HR 46218

4 kV maximum anode voltage · L° deflection · 3 windings · 444 g

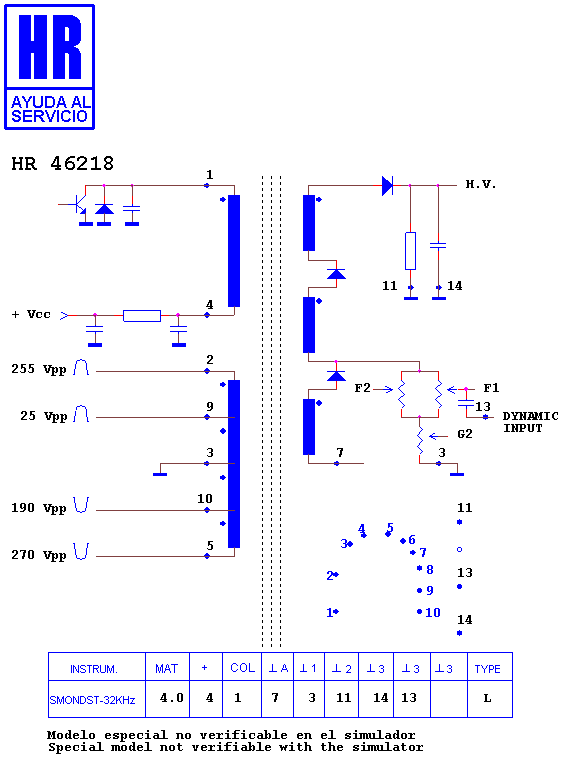

Schematic diagram for HR 46218
schematic (archived)

Manufacturer equivalents (4)

331100001611 · 331100001811 · CF1521 · LCECF1521

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7374 · HR 8391 · HR 5646

Fitted to (6)

BELINEA 106095 · BELINEA MONITOR · ETS ET 1896 C 4SCW1 · ETS MONITOR · TVM MONITOR · TVM TC 07 S
