HR 46207

type SM · family 1WD · 37.4 kV maximum anode voltage · H° deflection · 3 windings · 444 g

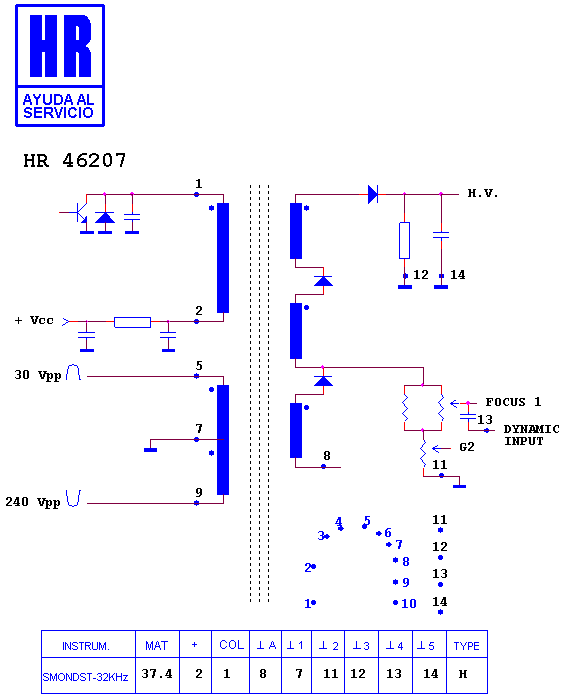

Schematic diagram for HR 46207
schematic (archived)

Manufacturer equivalents (1)

FEA 751

Fitted to (4)

DELL 828 FI · DELL MONITOR · IBM G 54 · IBM MONITOR

Search this part in the full database
