HR 46206

32.3 kV maximum anode voltage · H° deflection · 5 windings · 444 g

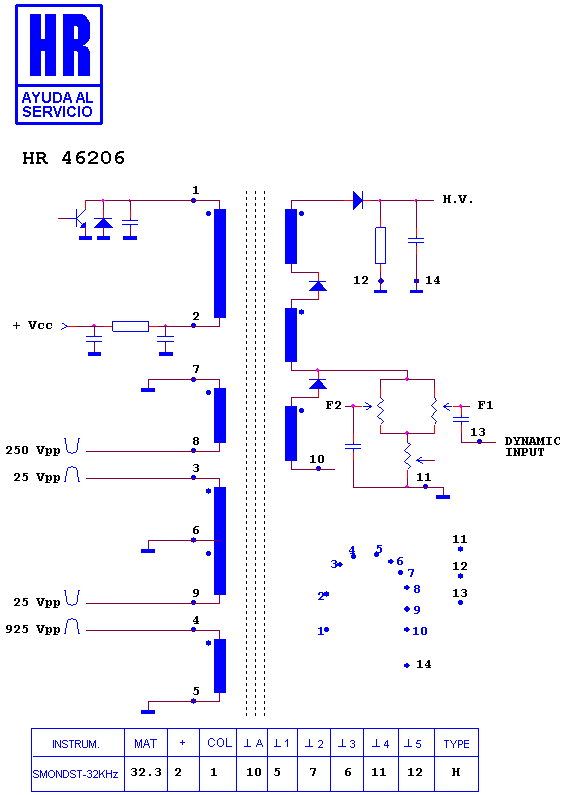

Schematic diagram for HR 46206
schematic (archived)

Manufacturer equivalents (9)

KFS61545 · KFS61545A · Y265271 · Y265271A · Y265275 · Y265275A · Y265387 · Y265432 · Y265432B

Fitted to (62)

FUJITSU 714 · FUJITSU KD 1750 · FUJITSU MONITOR · FUJITSU MONITOR · KDS-KOREA DATA SYSTEMS 1700 S · KDS-KOREA DATA SYSTEMS AV 9 T · KDS-KOREA DATA SYSTEMS EVOKD 1900 · KDS-KOREA DATA SYSTEMS EVOKD 2000 · KDS-KOREA DATA SYSTEMS KD 1700 S · KDS-KOREA DATA SYSTEMS KD 1700 V · KDS-KOREA DATA SYSTEMS KD 1750 · KDS-KOREA DATA SYSTEMS KD 1770 · KDS-KOREA DATA SYSTEMS KD 195 · KDS-KOREA DATA SYSTEMS KD 199 · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS MVS 9 E · KDS-KOREA DATA SYSTEMS V 19 S · KDS-KOREA DATA SYSTEMS VS 19 · KDS-KOREA DATA SYSTEMS VS 19 S · KDS-KOREA DATA SYSTEMS VS 19 SN · KDS-KOREA DATA SYSTEMS VS 195 · KDS-KOREA DATA SYSTEMS VS 9 E · MIRO D 1795 T · MIRO D 1995 DE · MIRO D 1995 FE · MIRO MONITOR · MIRO MONITOR · MIRO MONITOR · PRINCETON AGX 750 · PRINCETON E 075 · PRINCETON EO 75 · PRINCETON MONITOR · PRINCETON MONITOR · PRINCETON MONITOR · RADIUS 1-1 · RADIUS MONITOR · SYLVANIA F 91 · SYLVANIA F 91 · SYLVANIA F 91 MULTISCAN · SYLVANIA MONITOR · SYLVANIA MONITOR · SYLVANIA MONITOR MULTISCAN · YAKUMO MONITOR · YAKUMO MONITOR · YAKUMO OF 1795 · YAKUMO OF 1795 DO

Search this part in the full database
