HR 46196

type SM · family 1WP1 · 33.5 kV maximum anode voltage · L° deflection · 3 windings · 444 g

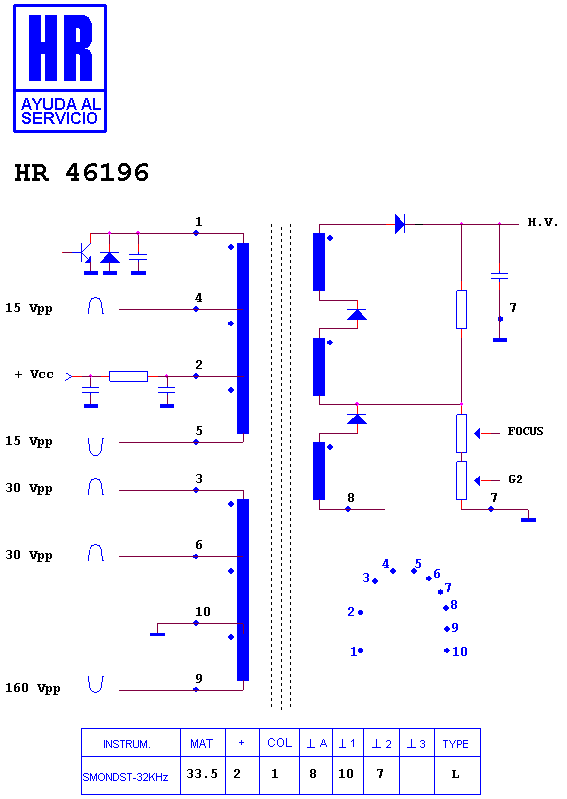

Schematic diagram for HR 46196
schematic

Manufacturer equivalents (11)

1242.0138 · 156ETF39L397AZT · 39 L 397 AZT · 39397A · 429041-01 · 7050304380 · 750 304 380 · ETF 39 L 397 AZT · FEA 027 · FEA 207 · FEA027A

Fitted to (14)

MEMOREX MONITOR · MEMOREX T 372 · MEMOREX T 372 13-1 CX · MEMOREX TELEX CDS 4583 · MEMOREX TELEX CM 17 · MEMOREX TELEX MONITOR · NCR 3298-0235 · NCR MONITOR · NIXDORF MCS 1404 · NIXDORF MONITOR · SIEMENS MCS 1404 · SIEMENS MONITOR · WYSE MONITOR · WYSE WY 660
