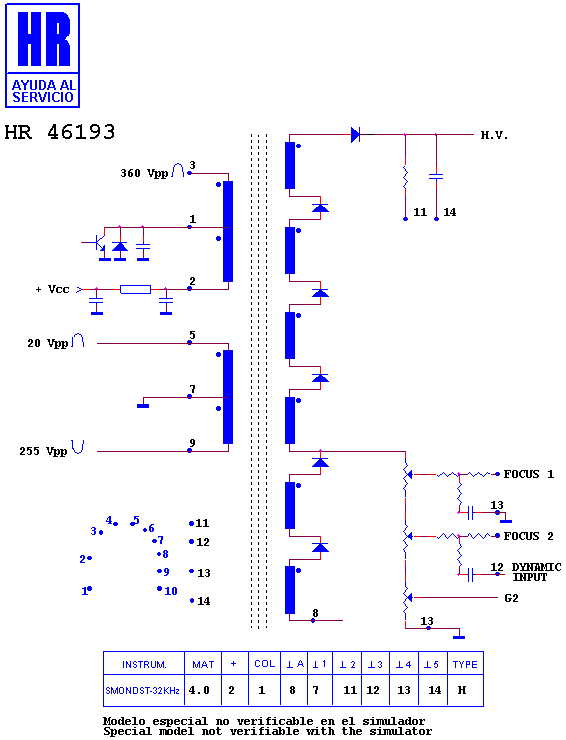

HR 46193

type SM · family 1WD · 4 kV maximum anode voltage · H° deflection · 3 windings · 444 g

Manufacturer equivalents (5)

CF 1463 · LCE CF 1463 · LZ 276 A 028 J · LZ 276 A 028 T · LZ 276 A 028 Y

Notes

COD-046 ALWAYS THE COLOUR CABLE COINCIDENT WITH THE ORIGINALMATCHES THE SAME COLOUR CABLE IN THE HR.

Fitted to (5)

ADI MICROSCAN 5 PD · ADI MONITOR · ADI MS 5 PD · COMPAQ MONITOR · COMPAQ V 700
