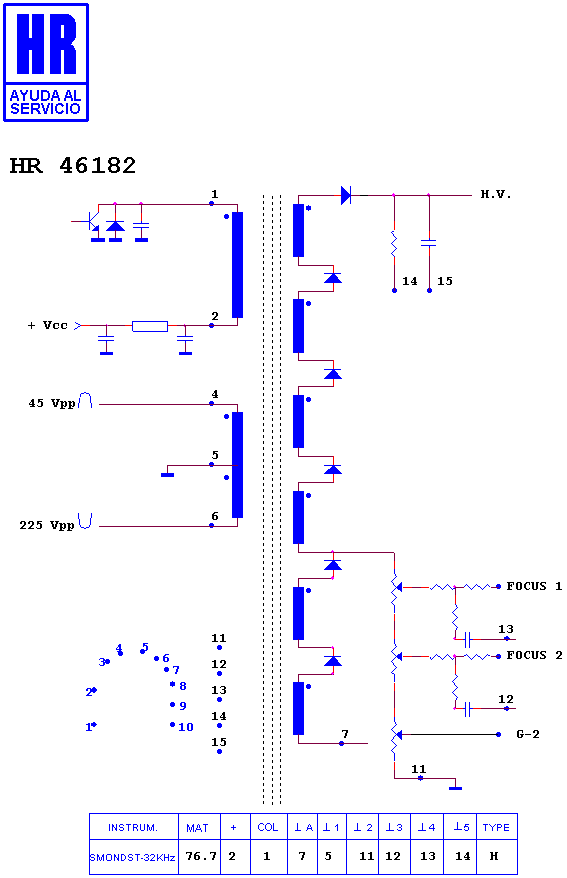

HR 46182

type SM · family 1WD · 76.7 kV maximum anode voltage · H° deflection · 3 windings · 474 g

Manufacturer equivalents (2)

19-70054-001 · 49637 49746

Notes

COD-046 ALWAYS THE COLOUR CABLE COINCIDENT WITH THE ORIGINALMATCHES THE SAME COLOUR CABLE IN THE HR.

Fitted to (12)

ACER 729 S · ACER 7299 SL · ACER 7379 G · ACER 99 SL · ACER MONITOR · BELINEA 103070 · BELINEA MONITOR · MEDION MD 1998 SI · MEDION MD 1998 SL · MEDION MD 7299 SL · MEDION MONITOR · MEDION ND 1998 SL
