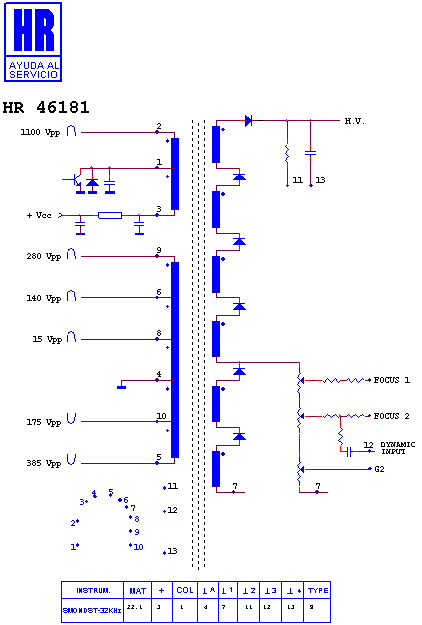

HR 46181

type SM · family 1WD · 22.1 kV maximum anode voltage · H° deflection · 3 windings · 474 g

Manufacturer equivalents (8)

331100001355 · 331100001357 · 331100001367 · CT 8550 · CT 8558 · FEA734C · FEA734D · LZ250-002-00

Notes

COD-046 ALWAYS THE COLOUR CABLE COINCIDENT WITH THE ORIGINALMATCHES THE SAME COLOUR CABLE IN THE HR.

Fitted to (17)

AASHIMA MONITOR · AASHIMA PRO VISUAL 17 · ACANA ADVANCE 17 S · ACANA MONITOR · BELINEA 103020 · BELINEA MONITOR · HIGHSCREEN MONITOR · HIGHSCREEN MS 1770 P 2 · HIGHSCREEN MS 1770 P II · TRUST 10909 · TRUST MONITOR · TRUST PRO VISUAL 17" · TVM AS 6 S · TVM MONITOR · TVM TS 06 S · VOBIS MONITOR · VOBIS MS 1770 P 2
