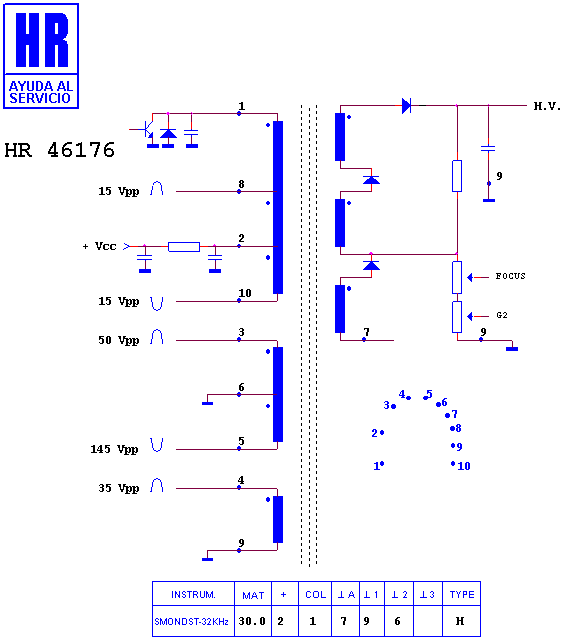

HR 46176

type SM · family 1WP1 · 30 kV maximum anode voltage · H° deflection · 4 windings · 444 g

Manufacturer equivalents (4)

6174 Z 1003 G · FEA 972 · FMMPC 51 M 1003 G · IP 14106

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (24)

APPLE 5400/180 · APPLE APPLE VISION · APPLE CA 95014 · APPLE G 233 · APPLE G 3 · APPLE IMAC · APPLE IMAC 233 · APPLE IMAC G 3 · APPLE IMAC G 3 233 MZ · APPLE IMAG G 3 · APPLE M 4984 IMAC · APPLE M 5521 · APPLE MONITOR · LG - GOLDSTAR 440 S · LG - GOLDSTAR MONITOR · MACINTOSH EMAC · MACINTOSH IMAC · MACINTOSH IMAC 233 · MACINTOSH IMAC G 3 · MACINTOSH M 4984 IMAC · MACINTOSH MONITOR · SAMPO 50656 · SAMPO IMAG G 3 · SAMPO MONITOR
