HR 46169

type SM · family 1WD · 41.9 kV maximum anode voltage · H° deflection · 3 windings · 474 g

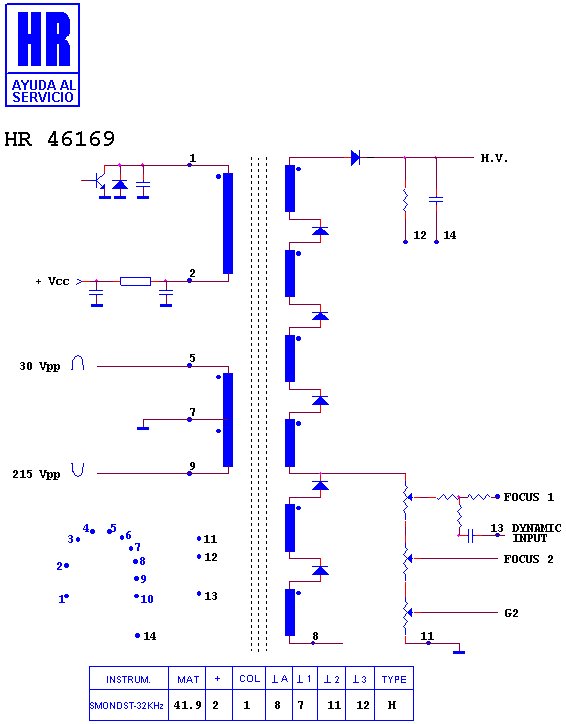

Schematic diagram for HR 46169
schematic

Manufacturer equivalents (2)

FKI 17 A 002 · FKY 17 A 002

Fitted to (10)

COMPAQ 900 P · COMPAQ MONITOR · HANSOL 701 A · HANSOL 900 P · HANSOL B 19 AL · HANSOL E 17 BL · HANSOL MAZELLAN 700 A · HANSOL MAZELLAN 701 A · HANSOL MAZELLAN 900 P · HANSOL MONITOR

Search this part in the full database
