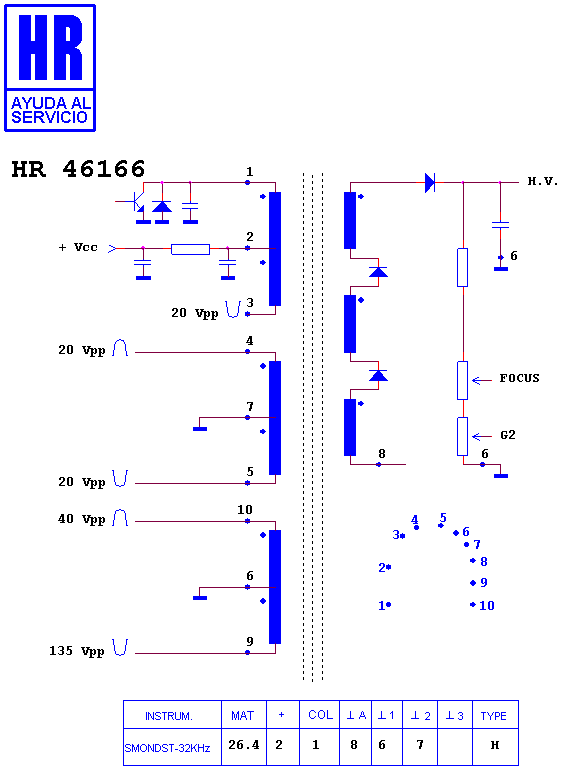

HR 46166

type SM · family 1WP1 · 26.4 kV maximum anode voltage · H° deflection · 4 windings · 444 g

Manufacturer equivalents (6)

DG 300005818 · FE 7547 T · FEA 256 · FEA 261 · FEA 627 · IP 14085

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

ITAUTEC 15 MM · ITAUTEC MONITOR
