HR 46165

type SM · family 1WP1 · 19.7 kV maximum anode voltage · L° deflection · 3 windings · 444 g

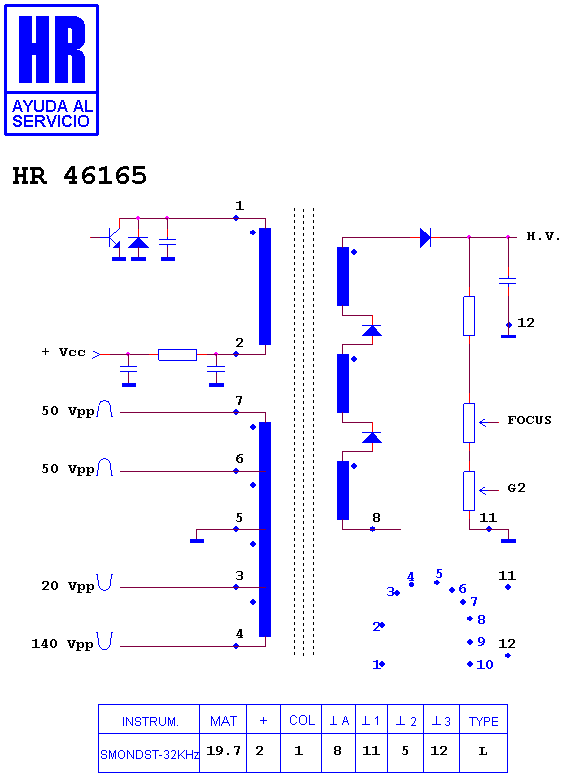

Schematic diagram for HR 46165
schematic

Manufacturer equivalents (7)

154 243 A · 154 382 A · 154 384 A · 6174 Z 2001 B · 6174Z2001BGTZ · 6174Z2001C · IP 14103

Fitted to (22)

APP 15 AV · APP KA 19 A 2 A · APP M 4681 · APP MONITOR · APP MONITOR MULTISCAN · APP MULTISCAN 15 AV · DIGITAL MONITOR · DIGITAL PCXBV-YC · DIGITAL TCXBV-A1 · GOLDSTAR - LG 5 D · GOLDSTAR - LG 56 I · GOLDSTAR - LG 56 M · GOLDSTAR - LG CHASIS CA 31 · GOLDSTAR - LG CM 530 · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR STUDIO WORKS · GOLDSTAR - LG STUDIOWORKS 56 · GOLDSTAR - LG STUDIOWORKS 56I · GOLDSTAR - LG SW 56 I · GOLDSTAR - LG SW 56 M · MACINTOSH KA 19 A 2 A · MACINTOSH MONITOR
