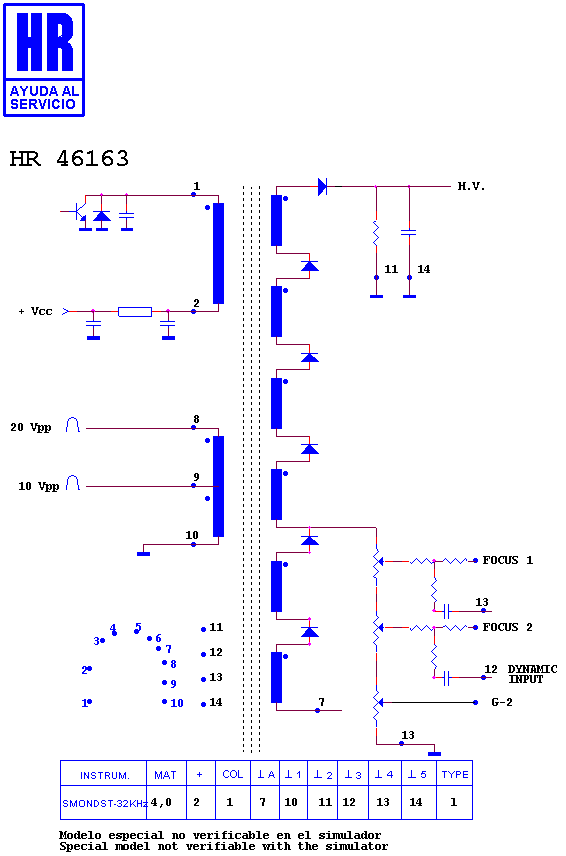

HR 46163

type SM · family 1WD · 4 kV maximum anode voltage · L° deflection · 3 windings · 474 g

Manufacturer equivalents (2)

1292.8001 · FM 0638

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 9339

Notes

COD-046 ALWAYS THE COLOUR CABLE COINCIDENT WITH THE ORIGINALMATCHES THE SAME COLOUR CABLE IN THE HR.

Fitted to (32)

COMPAQ MONITOR · COMPAQ V 70 · COMPAQ V 75 · DELL 1025 HB · DELL 800 HS · DELL D 1025 HE · DELL D 1025 HS · DELL D 125 ME · DELL MONITOR · DELL MONITOR ULTRASCAN · DELL P 790 · DELL TX 7868 · DELL TX 78682 · DELL UL 1950 · DELL ULTRASCAN 800HS · DELL ULTRASCAN P 790 · FUJITSU 447 S · FUJITSU ERGO PRO X174A · FUJITSU MONITOR · FUJITSU X 174 · FUJITSU X 174 A · HEWLETT PACKARD D 2840 · HEWLETT PACKARD MONITOR · NOKIA - ITT 447 S · NOKIA - ITT MONITOR · NOKIA DATA 4475 · NOKIA DATA MONITOR · SIEMENS 447 S · SIEMENS MCM 171 V · SIEMENS MONITOR · TULIP 4475 · TULIP MONITOR
