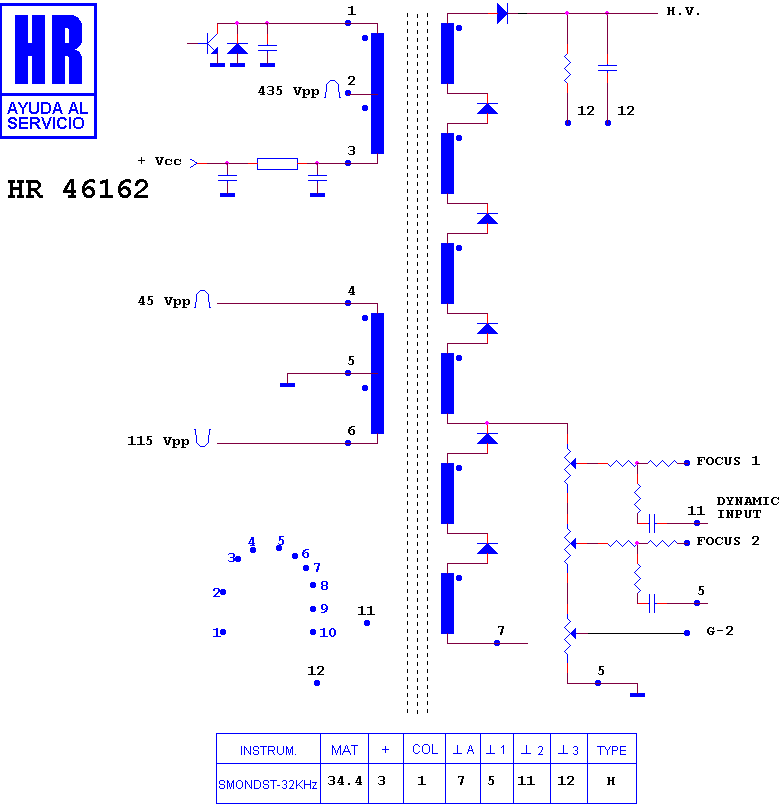

HR 46162

type SM · family 1WD · 34.4 kV maximum anode voltage · H° deflection · 3 windings · 474 g

Manufacturer equivalents (6)

154 245 A · 6174 T 13003 C · 6174 Z 1024 B · Y 265274 · Y 265382 · Y 265382 A

Notes

C537 (22MF) MUST BE REMOVED BEFORE PLACING HR 46162

Fitted to (29)

APPLE LR 53545 · APPLE M 6496 · APPLE MONITOR · APPLE MONITOR APPLE STUDIO · APPLE STUDIO DISPLAY · APPLE STUDIO MONITOR · APPLE VISUAL STUDIO · FUJITSU MONITOR · FUJITSU X 176 · LG - GOLDSTAR 76 I · LG - GOLDSTAR 76 T · LG - GOLDSTAR 77 I · LG - GOLDSTAR 790 SC · LG - GOLDSTAR 795 B · LG - GOLDSTAR 795 SC · LG - GOLDSTAR 795 UR · LG - GOLDSTAR CB 795 USB · LG - GOLDSTAR CHASIS CA 38 · LG - GOLDSTAR CHASIS CA 48 · LG - GOLDSTAR CHASIS CA 55 · LG - GOLDSTAR FB 795 B · LG - GOLDSTAR MONITOR · LG - GOLDSTAR MONITOR FLATRON · LG - GOLDSTAR MONITOR STUDIO WORKS · LG - GOLDSTAR STUDIOWORKS 761 · LG - GOLDSTAR SW 76 I · LG - GOLDSTAR SW 761 · LG - GOLDSTAR SW 790 SC · LG - GOLDSTAR SW 795 SC
