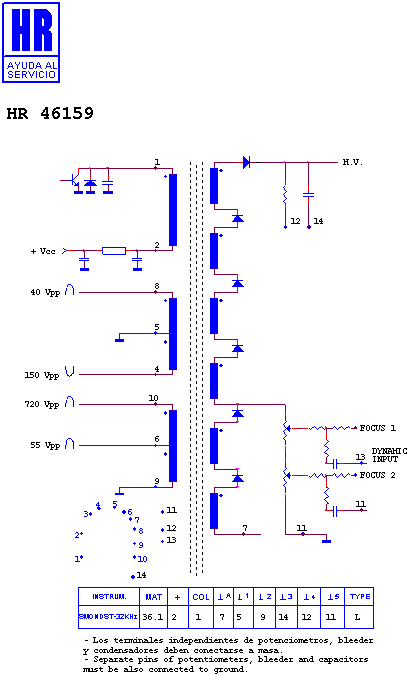

HR 46159

type SM · family 1WD · 27 kV maximum anode voltage · H° deflection · 474 g

Manufacturer equivalents (3)

6174 Z 1012 B · FMMTC 61-1012 B · IP 17010

Notes

COD-035 IN THIS HR TRANSFORMER THE SCREEN POTENTIOMETER IS NOT USED

Fitted to (25)

FUJITSU E 177 · FUJITSU MONITOR · GATEWAY 2000 EV 700 · GATEWAY 2000 MONITOR · LG - GOLDSTAR 77 M · LG - GOLDSTAR 775 C · LG - GOLDSTAR 775 N · LG - GOLDSTAR CA 65 · LG - GOLDSTAR CB 770 DC · LG - GOLDSTAR CB 770 DM · LG - GOLDSTAR CB 775 BC · LG - GOLDSTAR CB 775 BC TCO95 · LG - GOLDSTAR CB 775 BM · LG - GOLDSTAR CB 775 BN · LG - GOLDSTAR CB 775 BN MPRII · LG - GOLDSTAR CHASIS CA 65 · LG - GOLDSTAR CS 7778 DC · LG - GOLDSTAR CS 778 DC · LG - GOLDSTAR FT 775 N · LG - GOLDSTAR MONITOR · LG - GOLDSTAR MONITOR STUDIO WORKS · LG - GOLDSTAR SW 775 C · LG - GOLDSTAR SW 775 N · VIEWSONIC E 773 · VIEWSONIC MONITOR
