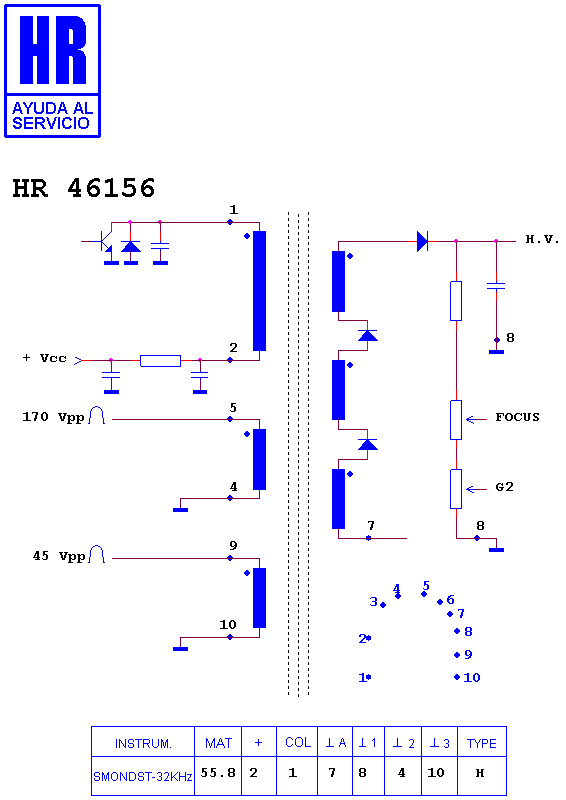

HR 46156

type SM · family 1WP1 · 55.8 kV maximum anode voltage · H° deflection · 444 g

Manufacturer equivalents (5)

FEA 426 · FEA 426-1510 · LEA 5340 X 1 · MAT 33277 · TFB 4812

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.

Fitted to (5)

IBM 6542-301 · IBM 6543-301 · IBM 6543-302 · IBM G 50 · IBM MONITOR

Search this part in the full database
