HR 46154

type SM · family 1WD · 28.9 kV maximum anode voltage · L° deflection · 444 g

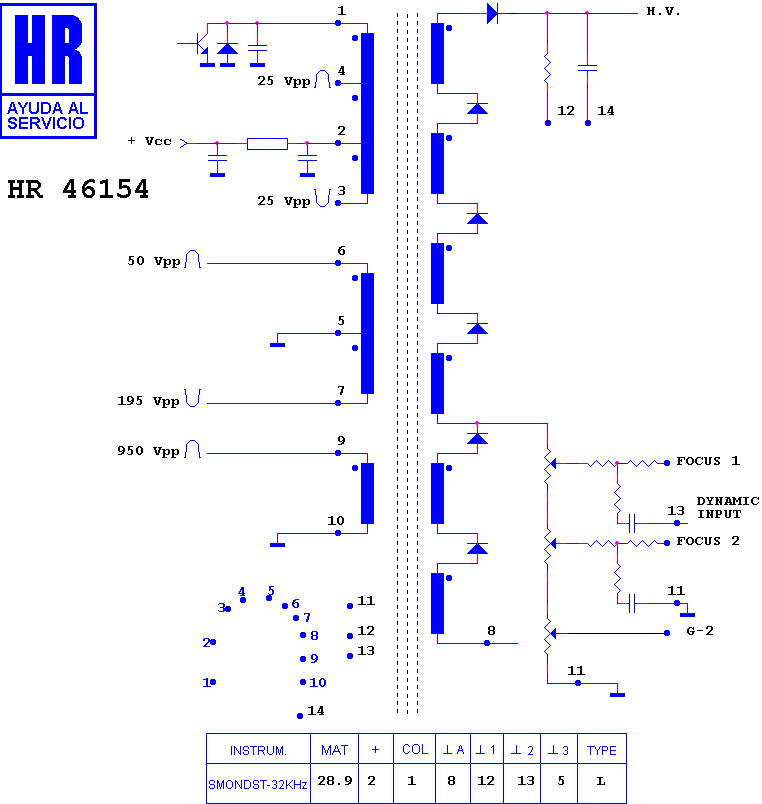

Schematic diagram for HR 46154
schematic

Manufacturer equivalents (5)

DNF-FT 0002 · FFA 76014 D · FFA 76014 L · FFA 76014 U · FT 0002

Fitted to (8)

DAEWOO DX 1764 N · DAEWOO MONITOR · JEAN DX 1764 N · JEAN MONITOR · SUNVIEW DX 1794 N · SUNVIEW MONITOR · VISTAPOINT DX 1764 N · VISTAPOINT MONITOR

Search this part in the full database
