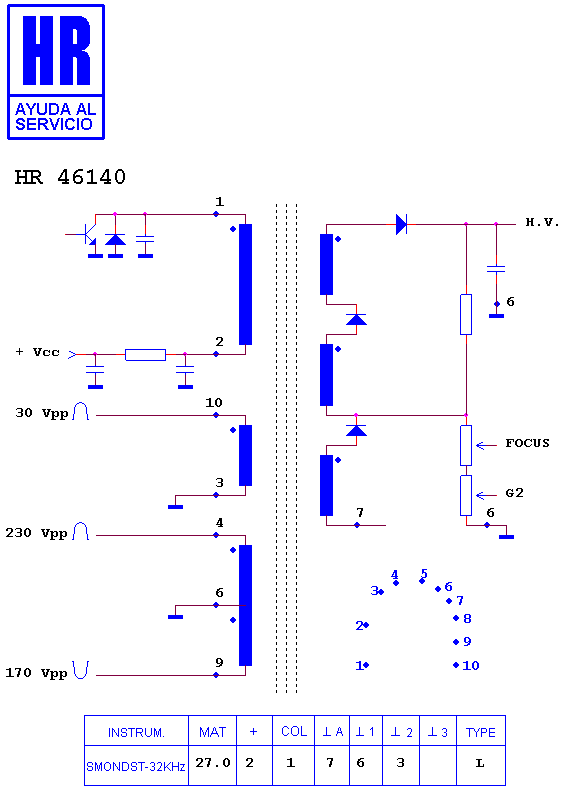

HR 46140

type SM · family 1WP1 · 27 kV maximum anode voltage · L° deflection · 444 g

Manufacturer equivalents (4)

E 42048044010 · IP 14047 · KFS 61107 · KFS 61107 A

Notes

COD-039 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS/SCREEN POTENTIOMETERS AND H.V. CAPACITOR CONNECTED INTERNALLY.

Fitted to (8)

HYUNDAI CDU 1448 G · HYUNDAI CDU 14486 · HYUNDAI HCM 401 · HYUNDAI HCM 438 EV · HYUNDAI HL 4850 · HYUNDAI MONITOR · METRON HN 4848 · METRON MONITOR
