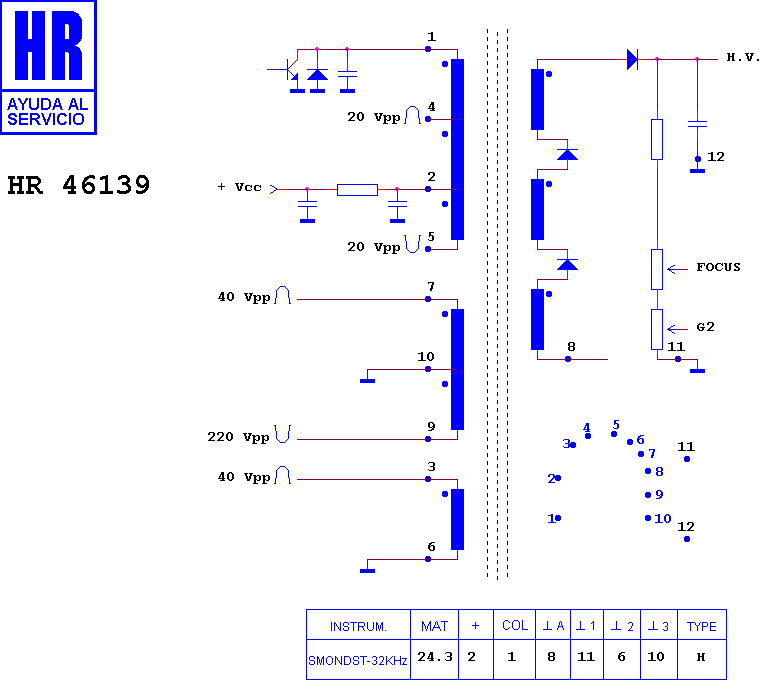

HR 46139

type SM · family 1WP1 · 24.3 kV maximum anode voltage · H° deflection · 444 g

Manufacturer equivalents (8)

35 L 503 BZT · 35503 B · 7050304300 · 7050304610 · 7050314610 · ETF 35 L 503 BZT · FEA 229 · MAT 33352

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16525 — Screen (G2) control

Fitted to (11)

DIGITAL MONITOR · DIGITAL PC 7 VX-DE · DIGITAL PC 7 XV-DE · DIGITAL PC 7 XV-TE · NIXDORF MCM 1402 · NIXDORF MCM 1503 · NIXDORF MONITOR · NOMEN EM 1028 T · NOMEN MONITOR · SIEMENS MCM 1402 · SIEMENS MONITOR
