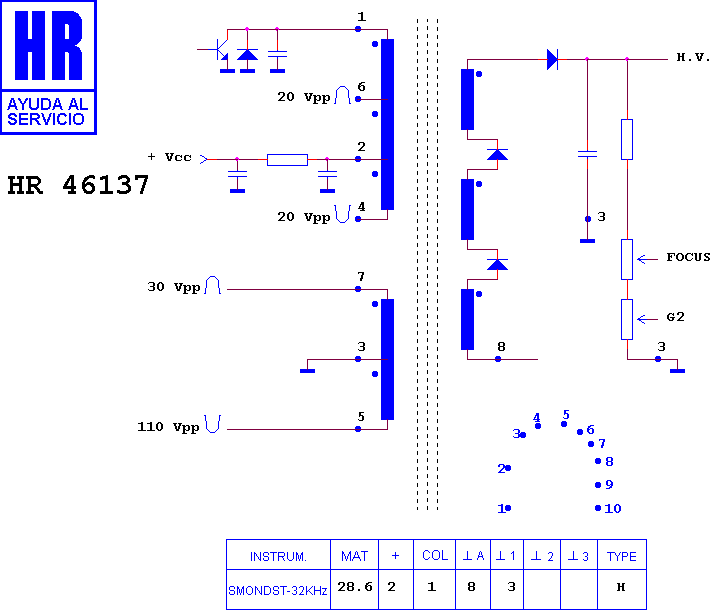

HR 46137

type SM · family 1WP1 · 28.6 kV maximum anode voltage · H° deflection · 444 g

Manufacturer equivalents (4)

BSC 24-23547 · FEA 147 · LZ 174 A 100 T · MAT 33181

Notes

COD-039 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS/SCREEN POTENTIOMETERS AND H.V. CAPACITOR CONNECTED INTERNALLY.

Fitted to (10)

ADI MONITOR · ADI SM 5514 · ADI SM 5514 A · ADI SM 5514 E · COMPAQ 460 · COMPAQ 460 MULTISYNC · COMPAQ 461 · COMPAQ 461 MULTISYNC · COMPAQ MONITOR · COMPAQ MONITOR MULTISYNC
