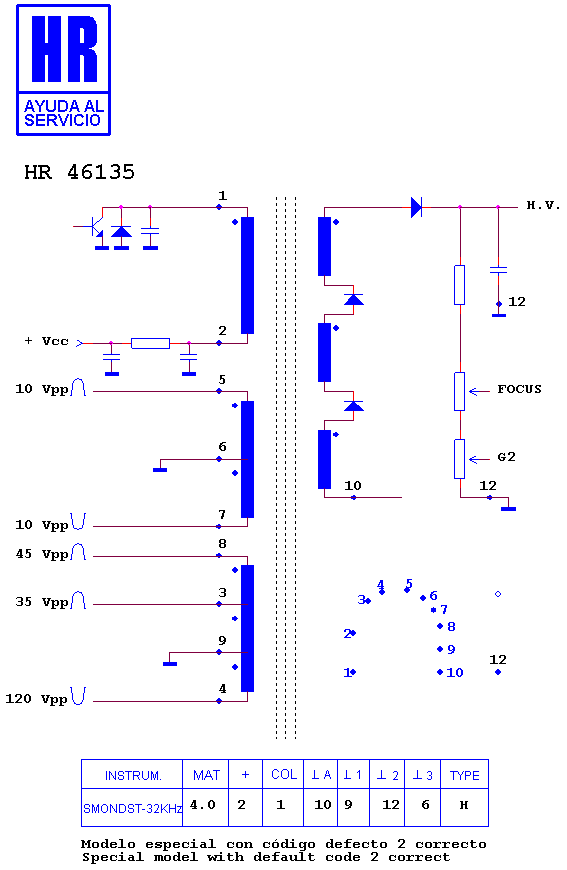

HR 46135
Manufacturer equivalents (6)
6174 Z 1002 A · 6174 Z 2001 G · 6174 Z 2001 GGTZ · FMMPC 11-2001 G · HFT 3501 · IP 14166
Notes
COD-039 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS/SCREEN POTENTIOMETERS AND H.V. CAPACITOR CONNECTED INTERNALLY. COD-044 FOR 6174Z1002A EXTERNAL H.V CAPACITOR MUST BE ELIMINATED AND C743 MUST BE CHANGED FROM 6;8 MF TO 4;7 MF 50 V.
Fitted to (36)
DIGITAL CHASIS CA 46 · DIGITAL MONITOR · DIGITAL PCXBV-ED · DIGITAL PCXBV-EZ · DIGITAL VD 645 · GATEWAY 2000 500-069 CS · GATEWAY 2000 500-069 EV · GATEWAY 2000 700-069 CS · GATEWAY 2000 EV 500 · GATEWAY 2000 EV 500-069 CS · GATEWAY 2000 GV 500 · GATEWAY 2000 MONITOR · LG - GOLDSTAR 1465 DLS · LG - GOLDSTAR 1467 · LG - GOLDSTAR 57 I · LG - GOLDSTAR 57 M · LG - GOLDSTAR 57 T 5 · LG - GOLDSTAR CHASIS CA 46 · LG - GOLDSTAR CHASIS CA 60 · LG - GOLDSTAR CS 590 · LG - GOLDSTAR CS 598 DM · LG - GOLDSTAR MONITOR · LG - GOLDSTAR MONITOR STUDIO WORKS · LG - GOLDSTAR STUDIOWORKS 56 · LG - GOLDSTAR STUDIOWORKS 57T · LG - GOLDSTAR SW 57 I · LG - GOLDSTAR SW 57 T 5 · OLIVETTI 70-520 · OLIVETTI CDU 1569 · OLIVETTI CDU 1569 GS 02 · OLIVETTI CDU 1569/GS 02 · OLIVETTI DCM 70-520 · OLIVETTI DSM 70-520 · OLIVETTI MONITOR · PACKARD BELL 5480 E · PACKARD BELL MONITOR
