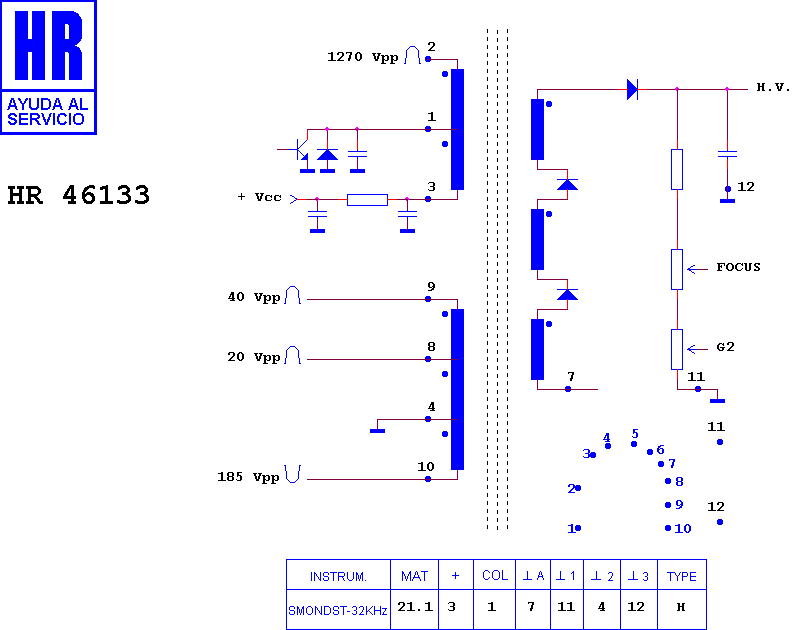

HR 46133

type SM · family 1WP1 · 21.1 kV maximum anode voltage · H° deflection · 444 g

Manufacturer equivalents (2)

331100001105 · FEA 641

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.

Fitted to (4)

PROVIEW 570 · PROVIEW MONITOR · SAMPO 15 SP · SAMPO MONITOR
