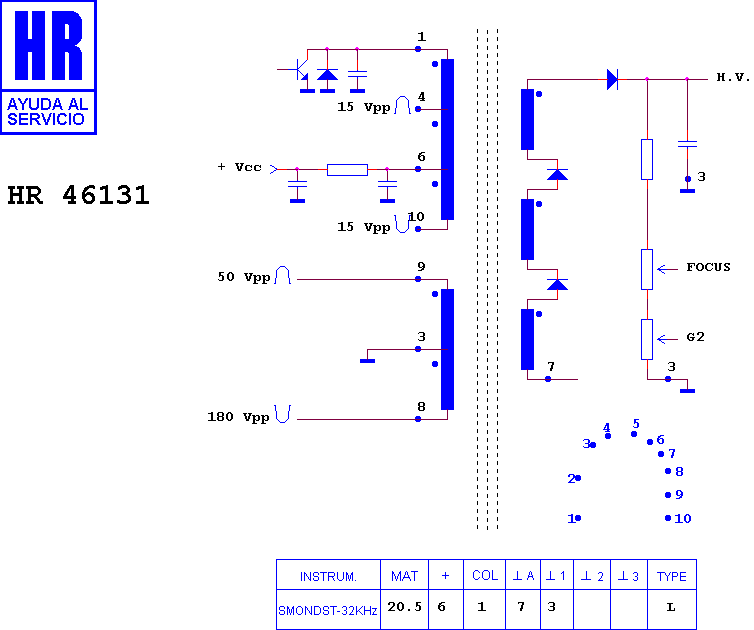

HR 46131

type SM · family 1WP1 · 20.5 kV maximum anode voltage · L° deflection · 444 g

Manufacturer equivalents (13)

0065277 · 325407001 · 356902-001 · FEA 438 · FEA722 · IP 14120 · LZ 210 A 008 A · LZ 210 A 008 J · LZ 210 A 008 L · LZ 210 A 008 T · LZ 210 E 008 P · LZ 210 E 008 T · TAD53629

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.

Fitted to (10)

ADI MONITOR · ADI PV 448 · COMPAQ CO 1001 · COMPAQ CO 1001 U · COMPAQ MONITOR · COMPAQ MV 400 · COMPAQ PE 1100 · COMPAQ V 45 · PROVIEW MONITOR · PROVIEW PV 448
