HR 46128

type SM · family 1WD · 35.2 kV maximum anode voltage · H° deflection · 474 g

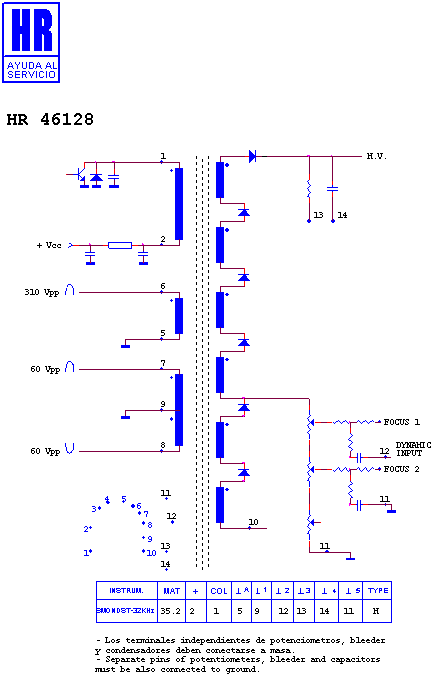

Schematic diagram for HR 46128
schematic
Schematic diagram for HR 46128
accessory sheet

Manufacturer equivalents (7)

1-453-240-11 · 1-453-240-21 · 39 L 2501 AZ · 392501 A · 7050307 Y 10 · 9-980-150-01 · ETF 39 L 2501 AZ

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

Notes

COD-046 ALWAYS THE COLOUR CABLE COINCIDENT WITH THE ORIGINALMATCHES THE SAME COLOUR CABLE IN THE HR.

Fitted to (19)

SONY 17 V · SONY 200 ES · SONY CHASIS · SONY CPD 200 ES · SONY CPD 200 EST · SONY CPD 200 SX · SONY CPD 200 SXUC 7 · SONY CPD 2000 SX · SONY CPD 2000 SXUC 7 · SONY CPD 220 EF · SONY G 420 · SONY GPD 200 ES · SONY GPD 200 EST · SONY GPD 200 GST · SONY MONITOR · SONY MONITOR MULTISCAN · SONY MULTISCAN 200ES · SONY SCC-L 16 A-A · SONY SX 200
