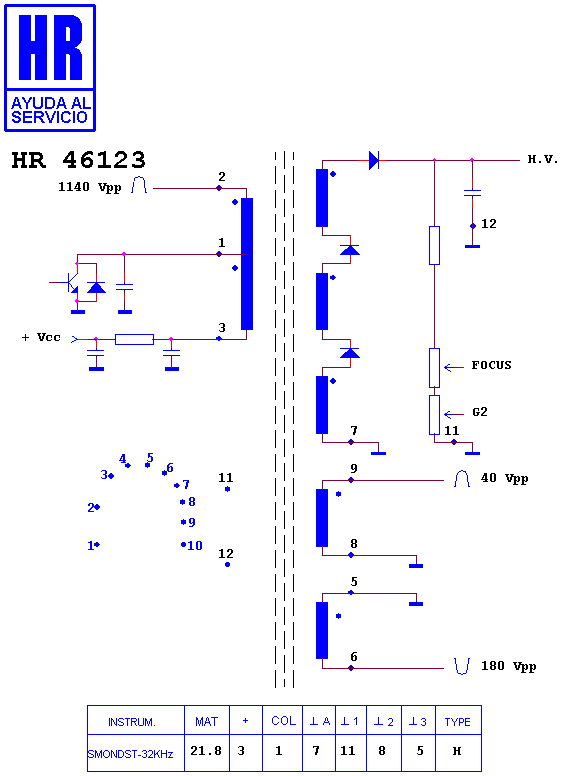

HR 46123

type SM · family 1WP1 · 29 kV maximum anode voltage · L° deflection · 461 g

Manufacturer equivalents (13)

6174 Z 2003 E · 6174 Z 2003 F · 730 302 0850 M · 730 302 0850 N · 730 302 850 M · BSM 31-3105 · FEA 645 · FSN 14 A 029 · FSN 14 A 029 F · FSN 14 A 029 S · FSN 14 A 033 · FSN 14 A 033 S · IP 14075

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.

Fitted to (19)

ALTON 848 D · ALTON MONITOR · EMC 564 SA · EMC MONITOR · PROLINE MD 1451 · PROLINE MONITOR · PROVIEW 848 DM · PROVIEW MD 1452 · PROVIEW MD 560 · PROVIEW MD 848 DM · PROVIEW MONITOR · PROVIEW ND 848 FN · PROVIEW PV 1455 · PROVIEW PV 1750 P · PROVIEW PV 850 · PROVIEW PV 850 D · PROVIEW PV 860 DX · TUV MONITOR · TUV PV 772 IM

Search this part in the full database
