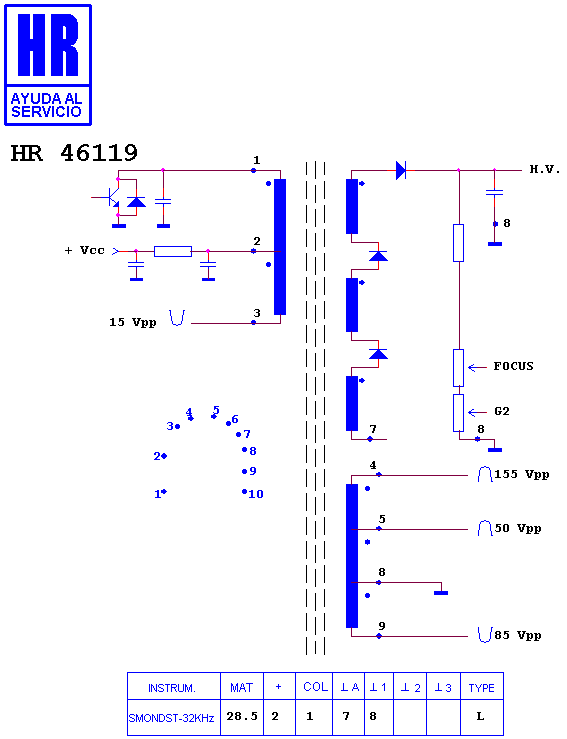

HR 46119

type SM · family 1WP1 · 21.3 kV maximum anode voltage · H° deflection · 461 g

Manufacturer equivalents (13)

207409-001 · 285058-001 · 5062027520 · 5062627520 · CF 1072 · CF 1072 A · IP 14071 · LCE CF 1072 · LCE CF 1072 A · TFB 275 · TFB 275 J · TFB 275 L · TFB 275 T

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (16)

COMPAQ 304 · COMPAQ 304 U · COMPAQ 470 A · COMPAQ 613 · COMPAQ MONITOR · COMPAQ MONITOR PRESARIO · COMPAQ PRESARIO 304 U · COMPAQ PRESARIO V 304U · COMPAQ PRESARIO V 410 · COMPAQ U 613 · COMPAQ V 304 U · COMPAQ V 40 · COMPAQ V 40613 · COMPAQ V 410 · PHILIPS C 2082 DAS/BA · PHILIPS MONITOR

Search this part in the full database
