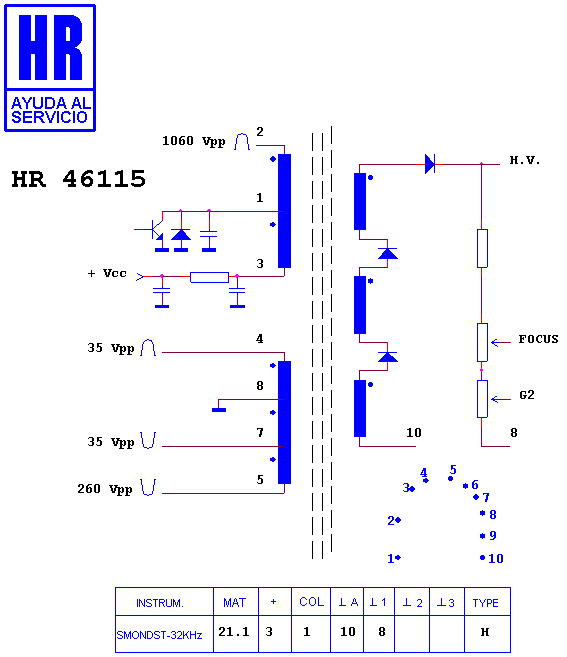

HR 46115

type SM · family 1WP1 · 28.2 kV maximum anode voltage · L° deflection · 444 g

Manufacturer equivalents (10)

1490502 · CF 0756 · FEA 480 · LCE CF 0756 · LE 5854 B 1 · MAT 33261 · TF 2-4 V 5-020-L 0 · TF 2-4 V 5-020-LO · TF 2-4 V 5-020-S 0 · TF 2-4 V 5-020-SO

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (15)

BELINEA 105065 · BELINEA MONITOR · GATEWAY 2000 015007 A-AAWW · GATEWAY 2000 MON0015007AAAWW · GATEWAY 2000 MONITOR · MAG 1595 · MAG DX 15 FG · MAG DX 1595 V · MAG MONITOR · MATRON DX 15 FG · MATRON MONITOR · YAKUMO DPS 1564 · YAKUMO DSP 1564 · YAKUMO MONITOR · YAKUMO OF 1564 DO
