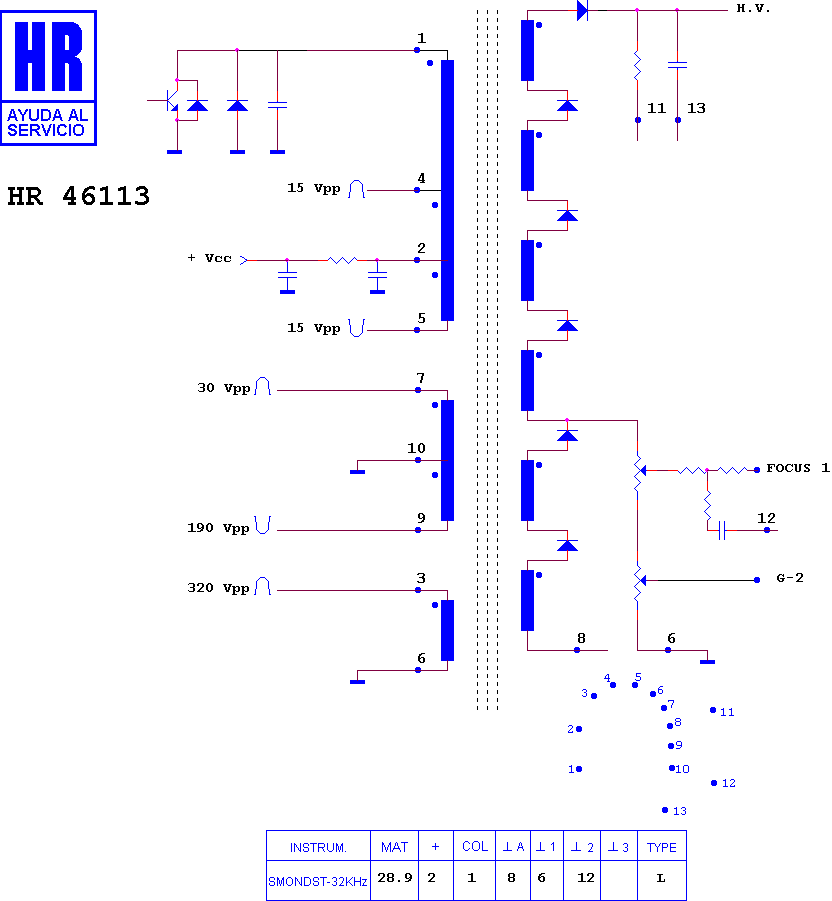

HR 46113

type SM · family 1WD · 28.9 kV maximum anode voltage · L° deflection · 474 g

Manufacturer equivalents (7)

39 L 1050 AZ · 39 L 1063 AZ · 391063 A · 705 030 5 D 11 · 7050305011 · ETF 39 L 1050 AZ · ETF 39 L 1063 AZ

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING. COD-046 ALWAYS THE COLOUR CABLE COINCIDENT WITH THE ORIGINALMATCHES THE SAME COLOUR CABLE IN THE HR.

Fitted to (4)

SONY CPD 100 SX · SONY CPD 15 SF 2 · SONY CPD 15 SX 1 · SONY MONITOR
