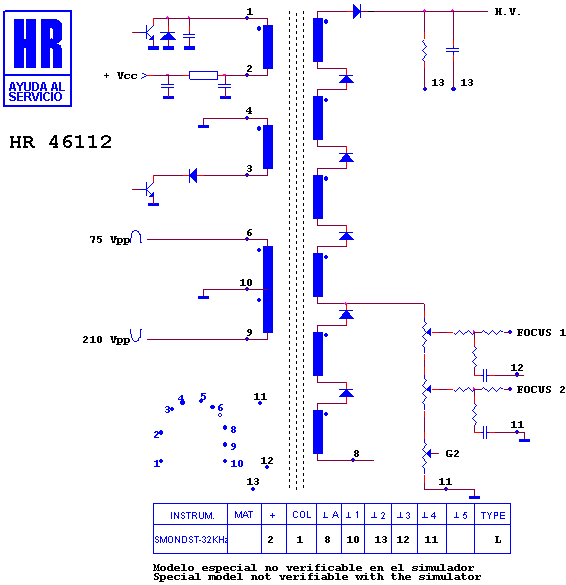

HR 46112
Manufacturer equivalents (10)
140 10585 · 3138 128 74461 · 40 L 1010 AZ · 401010A · 401010B · 40L1010BZ · 4822 140 10585 · ETF 40 L 1010 AZ · ETF 40 L 1010 CZ · ETF40L1010BZ
Notes
YOU MUST BE USED A FREE AVAILABLE HOLES IN THE P.C. BOARD FOR INSERT HR POTENTIOMETERS PIN ALWAYS THE COLOUR CABLE COINCIDENT WITH THE ORIGINAL; MATCHES THE SAME COLOUR CABLE IN THE HR.
Fitted to (11)
DELL D 1028 L · DELL D 1428 L · DELL MONITOR · PHILIPS 17 B 6822 Q/00C · PHILIPS 17 B 6822 Q/02C · PHILIPS 17 B 6822 Q/20C · PHILIPS 3 D 86822 H/00C · PHILIPS 3 D 86822 H/74C · PHILIPS 3 G 468 A2H/00C · PHILIPS 3 G 468A2 H/00C · PHILIPS MONITOR
