HR 46110

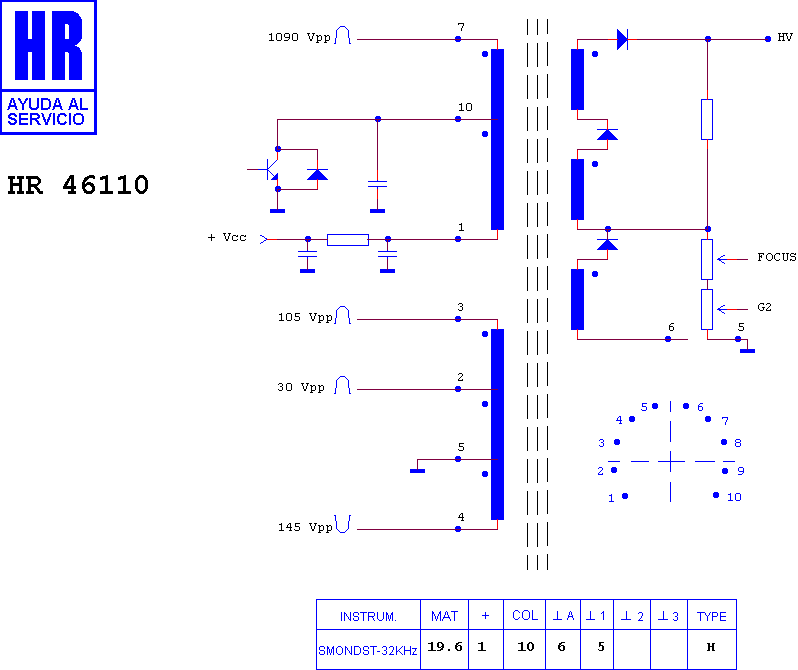

Schematic diagram for HR 46110
schematic

Manufacturer equivalents (1)

46 155 0043

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

MAGNETEK 1453-14-001 · MAGNETEK 1453-14-00102 · MAGNETEK 1453-14-00106 · MAGNETEK MONITOR · SIEMENS 6 FC 5103 · SIEMENS MONITOR
