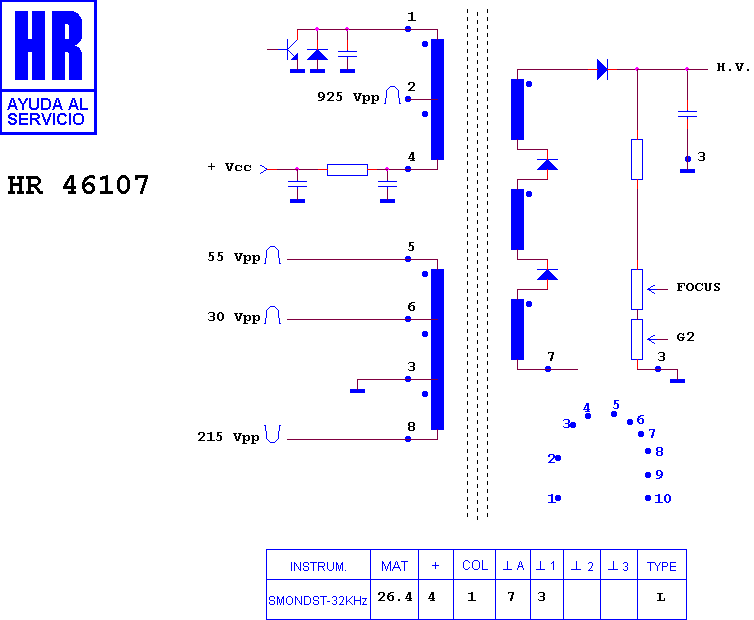

HR 46107

type SM · family 1WP1 · 26.4 kV maximum anode voltage · L° deflection · 474 g

Manufacturer equivalents (2)

FBT 007 · FEA230

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (10)

INVEST CM 1438 P · INVEST MONITOR · LIKON MONITOR · LIKON SRC 1451 · LIKON SRC 1452 L · LITE-ON CM 1438 P · LITE-ON MONITOR · SHAMROCK CM 1438 · SHAMROCK CM 1438 P · SHAMROCK MONITOR
