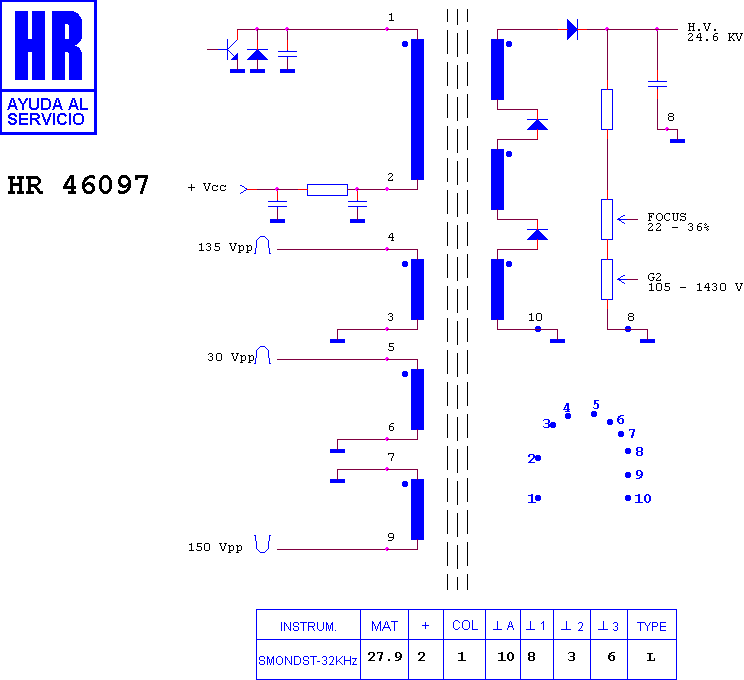

HR 46097

type SM · family 1WP1 · 27.9 kV maximum anode voltage · L° deflection · 444 g

Manufacturer equivalents (5)

334 P 031 · 334 P 031-01 · 334 P 031-1 · CP 334 P 03001 · CP 334 P 031

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (12)

APPLE M 1299 · APPLE MONITOR · APPLE RGB 12 DISPLAY · MACINTOSH M 1229 · MACINTOSH M 1296 · MACINTOSH M 1296 Z · MACINTOSH M 1299 · MACINTOSH MAC 1296 Z · MACINTOSH MONITOR · MACINTOSH RGB 12 DISPLAY · MITSUBISHI 12" RGB · MITSUBISHI MONITOR
