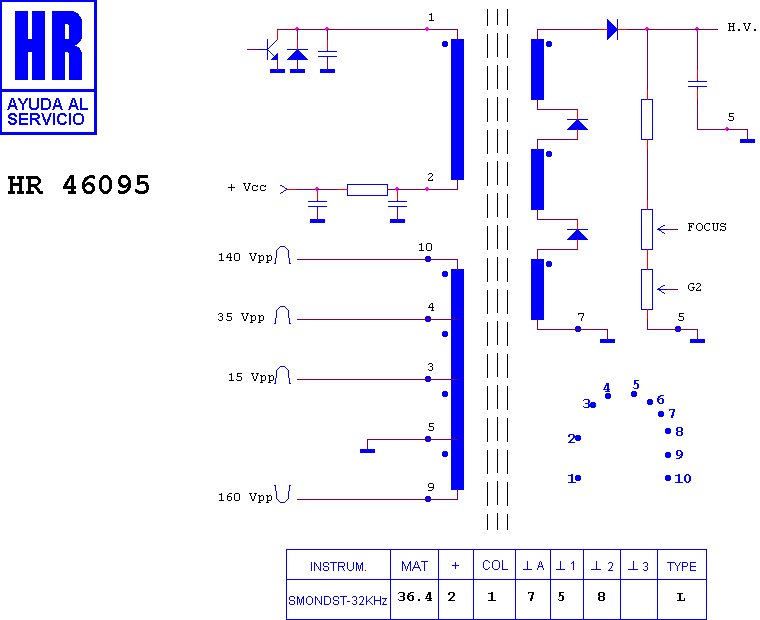

HR 46095

type SM · family 1WP1 · 36.4 kV maximum anode voltage · L° deflection · 474 g

Manufacturer equivalents (5)

1450203 · 243621003 · 6133057040 · 6133057042 · TFB 5704

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (21)

ART-SCAN CM 1450 MLR · ART-SCAN MONITOR · DIGITAL MONITOR · DIGITAL PCBV-BE · DIGITAL PCXBV-BE · DIGITAL PCXBV-PE · ESCOM ES 14 T 57 LR · ESCOM MONITOR · HIGHSCREEN MONITOR · HIGHSCREEN MS 1564 · HIGHSCREEN MS 1564 LR · LITE-ON CM 1450 MLR · LITE-ON CM 1464 MLR · LITE-ON MONITOR · LITE-ON MS 1564 · OPUS CM 1450 MLR · OPUS MONITOR · PEACOCK MONITOR · PEACOCK PM 1450 MLR · TAXAN MONITOR · TAXAN MV 789 LR

Search this part in the full database
