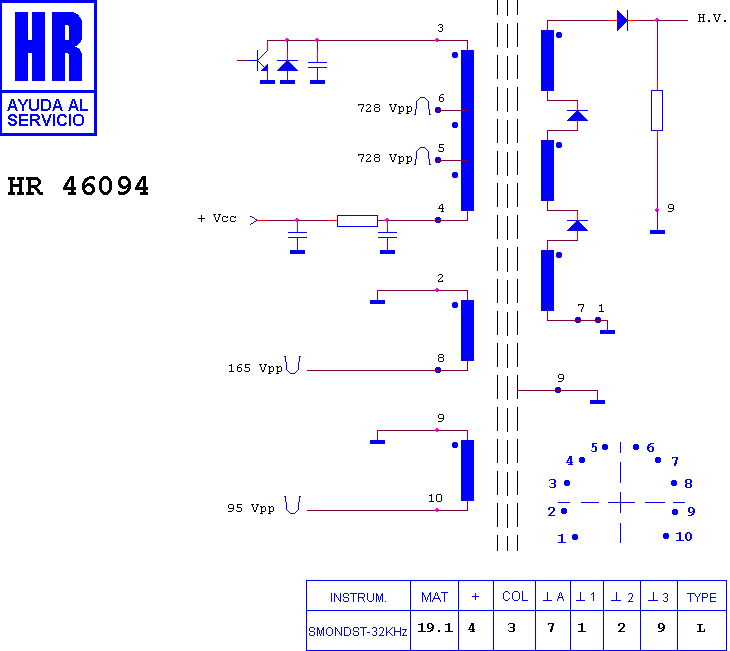

HR 46094

type SM · family 1AS1 · 19.1 kV maximum anode voltage · L° deflection · 346 g

Manufacturer equivalents (1)

3119 208 31400

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16524 — Focus control

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

DIGITAL MONITOR · DIGITAL P 2772 · PHILIPS MONITOR · PHILIPS P 2772
