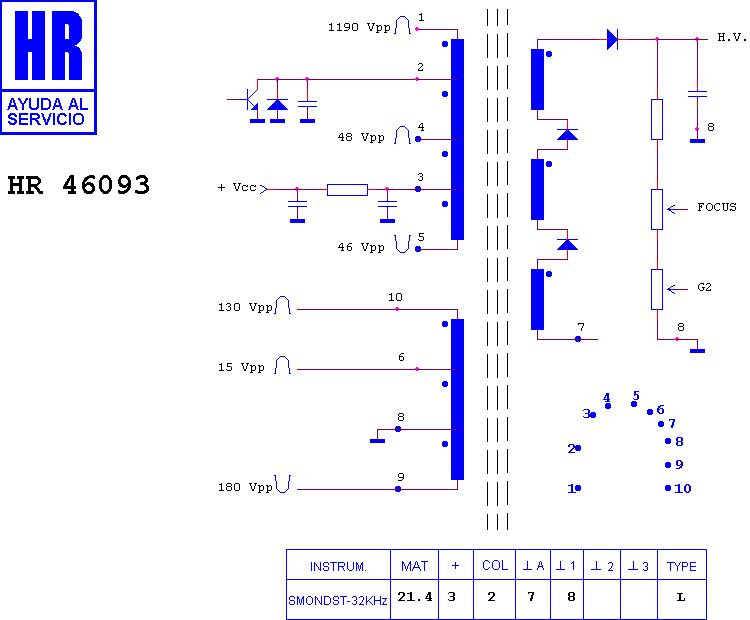

HR 46093
Manufacturer equivalents (19)
1450504 · 6133048130 · 6133048131 · 6133048133 · 6133064130 · CF 0853 · FBA 507 · FDA 507 · FEA 507 · FEA507A · FEA507B · FEA507C · LCE CF 0853 · MAT 33349 · TFB 4803 D · TFB 4813 · TFB 483 D · TFB4813B · TFB4813C
Notes
COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
Fitted to (26)
BELINEA 105095 · BELINEA MONITOR · COMPAQ 314 U · COMPAQ 317 T · COMPAQ MD 14 D · COMPAQ MONITOR · COMPAQ PRESARIO 314 U · HIGHSCREEN CM 1450 · HIGHSCREEN MD 14 D · HIGHSCREEN MONITOR · IBM 6450-02 N · IBM 6540-02 N · IBM G 51 · IBM MONITOR · LITE-ON CM 1450 · LITE-ON CM 1554 NEL · LITE-ON MONITOR · MAGITRONIC CSV 1500 PS · MAGITRONIC MONITOR · MAGITRONIC SV 1500 PS · MICROTEC MD 14 D · MICROTEC MONITOR · OLIVETTI DSM 60-400 · OLIVETTI MONITOR · VIEWSONIC E 651 · VIEWSONIC MONITOR
