HR 46090

type SM · family ASA6 · 23 kV maximum anode voltage · H° deflection · 386 g

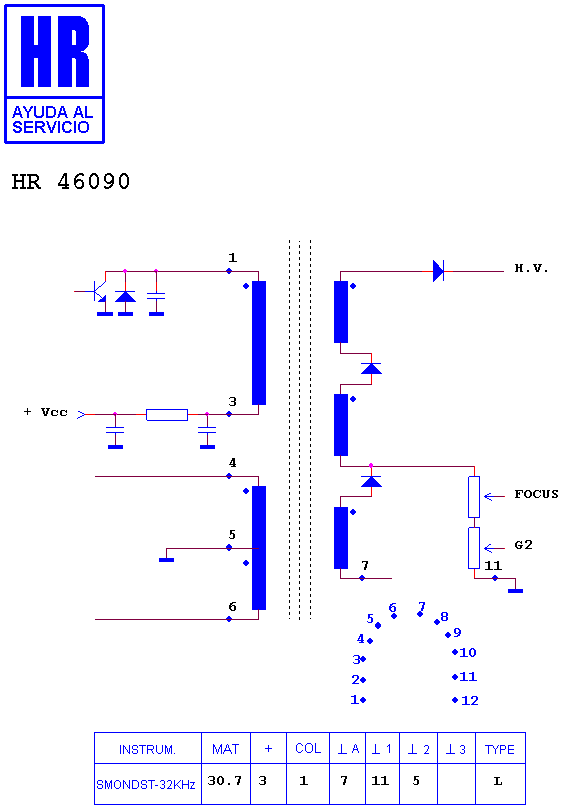

Schematic diagram for HR 46090
schematic

Manufacturer equivalents (3)

FEC 033 · FEC 033 A · FEC033B

Fitted to (14)

ADDONICS MON-C 141 D · ADDONICS MONITOR · DELL 15 FS-EN · DELL MONITOR · DELL MONITOR ULTRASCAN · RADIUS 0356 · RADIUS MONITOR · SAMPO KDM 1766 · SAMPO KMD 1766 D · SAMPO KMD 1766 U · SAMPO MONITOR · SIEMENS CM 1502 · SIEMENS MCM 1502 · SIEMENS MONITOR
