HR 46078

type SM · family ASA6 · 30.6 kV maximum anode voltage · 90° deflection · 386 g

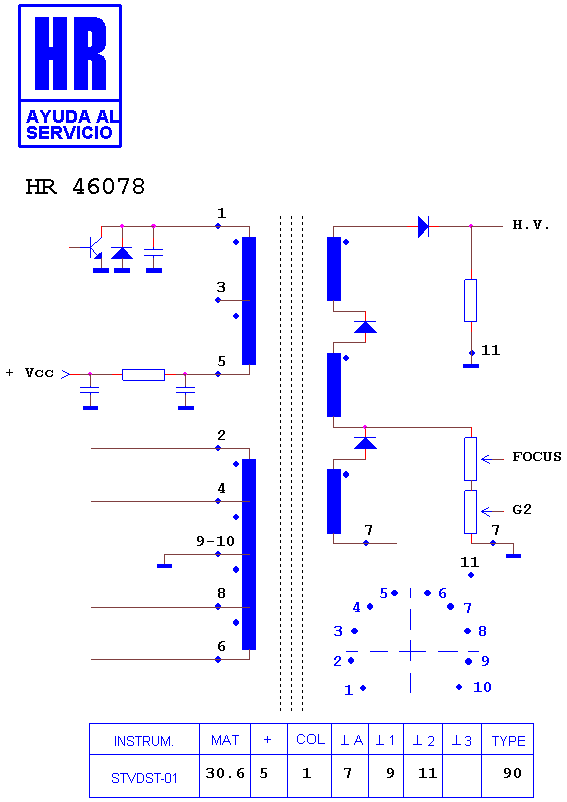

Schematic diagram for HR 46078
schematic (recovered)

Manufacturer equivalents (1)

2434291

Fitted to (6)

MEMOREX TELEX 079 · MEMOREX TELEX 179 · MEMOREX TELEX MONITOR · TELEX 079 · TELEX 179 · TELEX MONITOR
