HR 46062

type SM · family ASA6 · 25 kV maximum anode voltage · L° deflection · 386 g

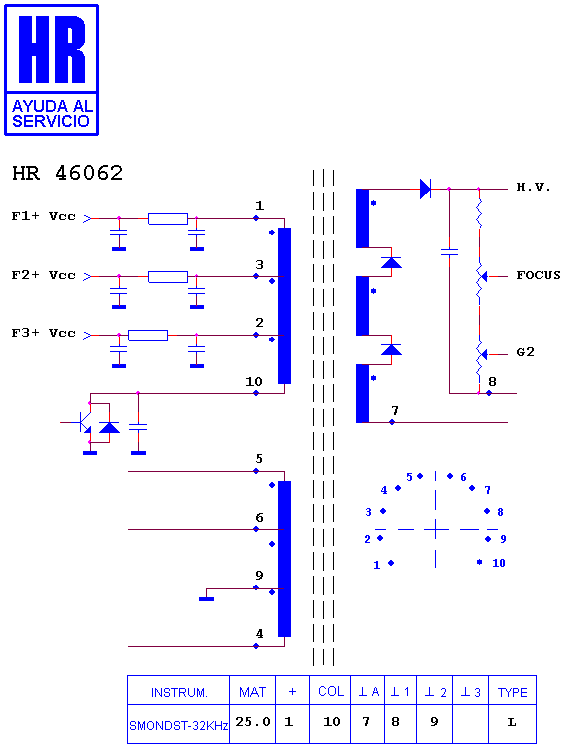

Schematic diagram for HR 46062
schematic (recovered)

Manufacturer equivalents (6)

CF 0168 A · CF 168 A · LCE CF 0168 A · LCE CF 168 A · MAT 33211 · TF 2-3 V 0-070-L 5

Fitted to (2)

GATEWAY 2000 MONITOR · GATEWAY 2000 PMV 1448
