HR 46060

type SM · family ASA6 · 25 kV maximum anode voltage · L° deflection · 386 g

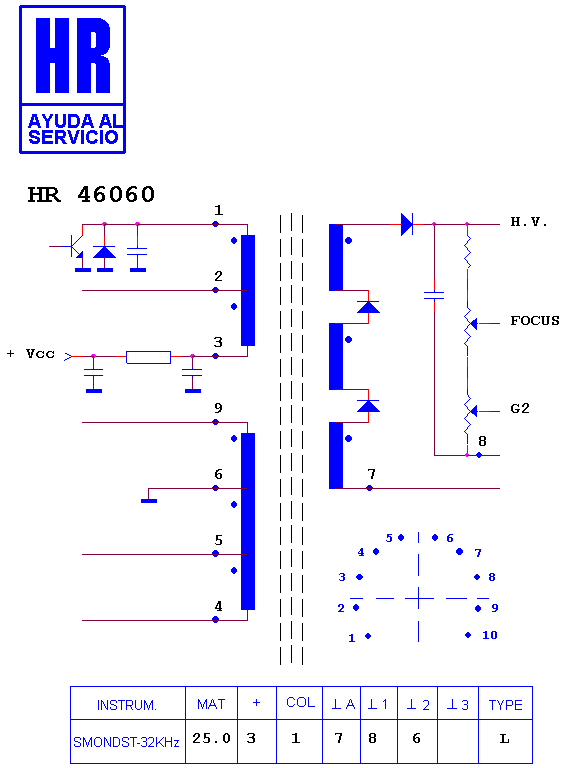

Schematic diagram for HR 46060
schematic (recovered)

Manufacturer equivalents (2)

95-4168 · MAT 33195

Fitted to (2)

ZENITH 1492 · ZENITH MONITOR
