HR 46059

type SM · family ASA6 · 38.1 kV maximum anode voltage · 110° deflection · 386 g

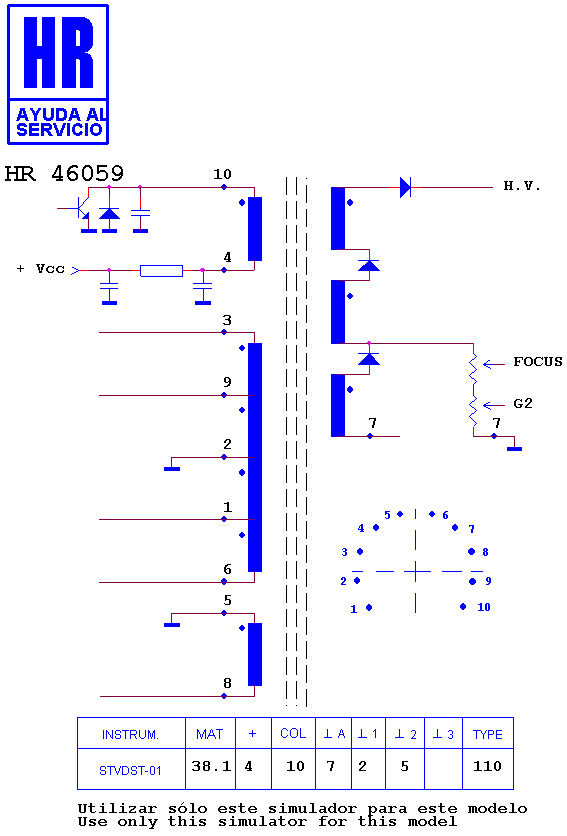

Schematic diagram for HR 46059
schematic (recovered)

Manufacturer equivalents (2)

2434301 · MAT 33180
