HR 46058

type SM · family ASA6 · 18.5 kV maximum anode voltage · 90° deflection · 386 g

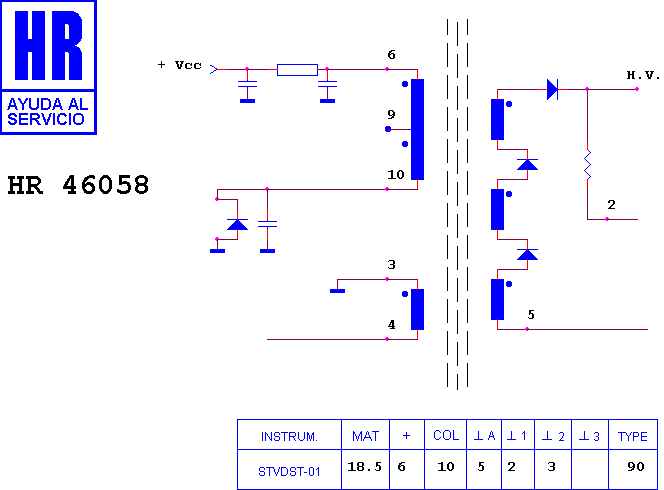

Schematic diagram for HR 46058
schematic

Manufacturer equivalents (8)

1162.0091 · 1162.0381 · 39 F 7428 · FCV 15 B 001 · FM 0595 · FM 0619 · MAT 33170 · MAT 33209

Fitted to (7)

IBM 3472 · IBM 3477 · IBM 3477 15" · IBM 3477-7 · IBM MONITOR · IBM MONITOR INFO WINDOW · NOKIA - ITT 3477
