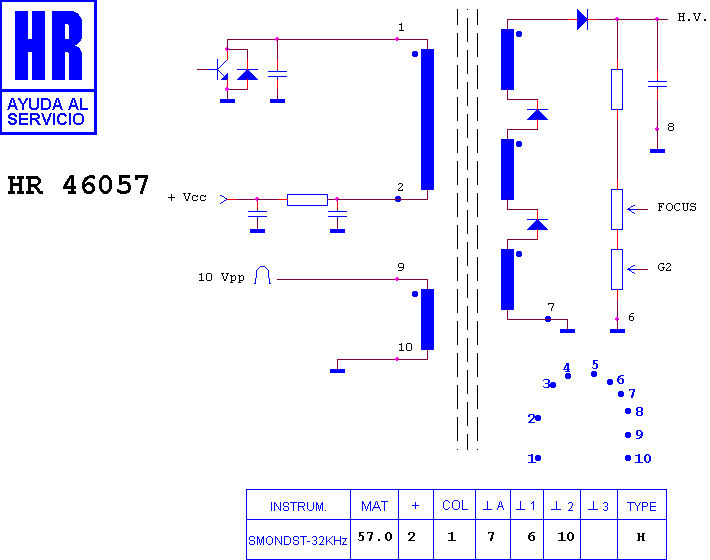

HR 46057

type SM · family 1WP1 · 57 kV maximum anode voltage · H° deflection · 444 g

Manufacturer equivalents (3)

1202.3010 · MAT 33162 · TLF 71004 D

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

IBM 8515 · IBM 8515-002 · IBM 8515-222 · IBM 8515002 · IBM 8515222 · IBM MONITOR
