HR 46056

type SM · family ASA6 · 25 kV maximum anode voltage · L° deflection · 386 g

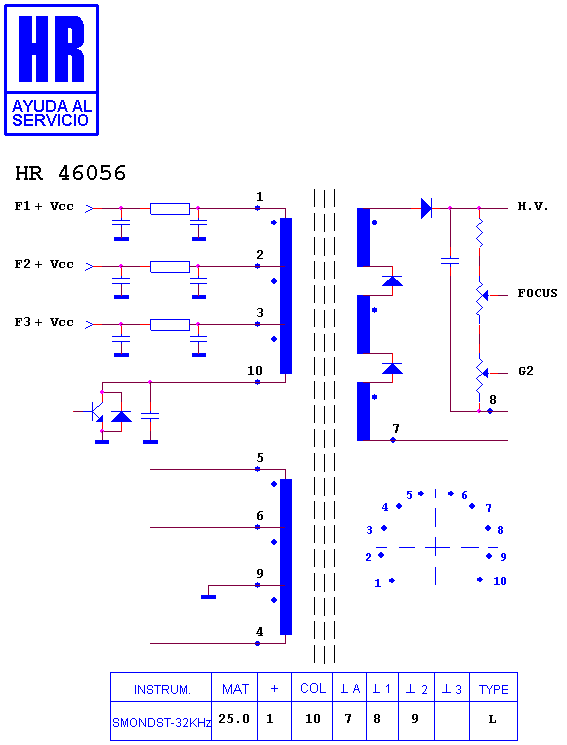

Schematic diagram for HR 46056
schematic (recovered)

Manufacturer equivalents (15)

003171103 · CF 0168 · FBT 042 M · FEA 065 · FEA 065 A · FEA 065-141 A · FEA 065-141 AA · LCE CF 0168 · MAT 33157 · N 80 FBT 042 M · QM 835 · RO 657 · TF 2-3 V 0-050-L 3 · TF 2-3 V 0-050-S 3 · TR 657

Fitted to (4)

GATEWAY 2000 ANV 1448 N 1 · GATEWAY 2000 MONITOR · QUME MONITOR · QUME QM 835

Search this part in the full database
