HR 46053

type SM · family 1WP1 · 23.1 kV maximum anode voltage · H° deflection · 444 g

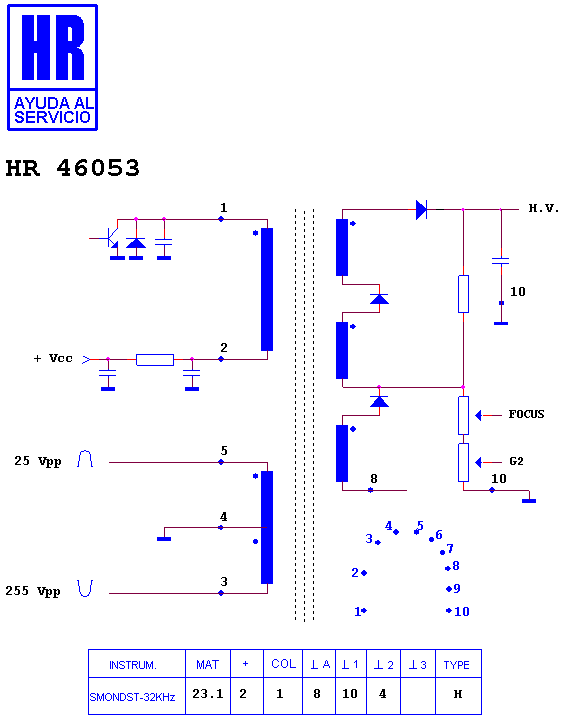

Schematic diagram for HR 46053
schematic

Manufacturer equivalents (3)

FTS 14 A 013 · FTS 14 A 013 A · MAT 33263

Fitted to (10)

IBM 5322 · IBM 5322-002 · IBM 5322002 · IBM 6321 · IBM 6322 · IBM 6322 R 22 · IBM 6322 R 32 · IBM 6322-002 · IBM 6322002 · IBM MONITOR

Search this part in the full database
