HR 46050

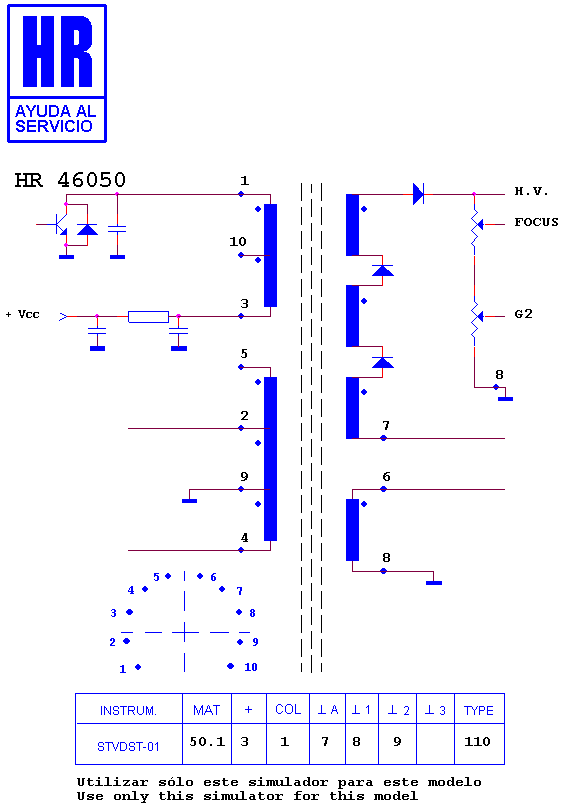

Schematic diagram for HR 46050
schematic (recovered)

Manufacturer equivalents (5)

176407 · 3 F 14001 · 3 F 14001 W · AM 176407 · MAT 33130

Fitted to (6)

AMSTRAD COMPUTER MONITOR · AMSTRAD MONITOR · AMSTRAD PC 14 CD · AMSTRAD PC 14 CD/O · ORION MONITOR · ORION PC 14 CD
