HR 46042

type SM · family ASA6 · 20.1 kV maximum anode voltage · L° deflection · 386 g

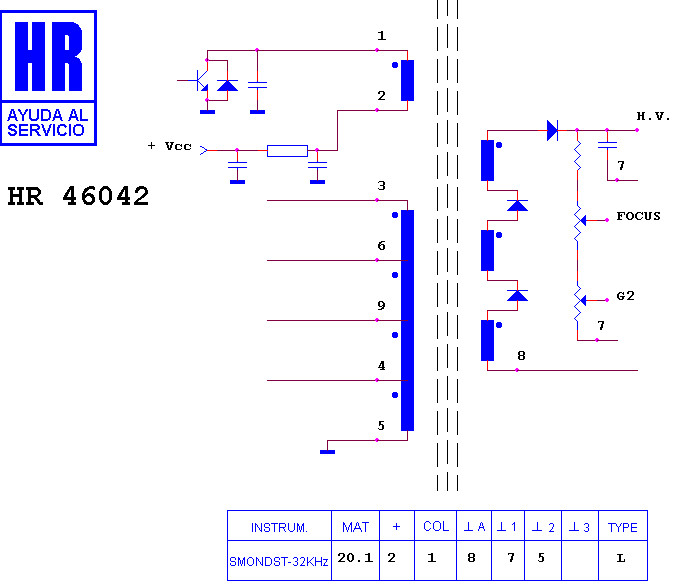

Schematic diagram for HR 46042
schematic

Manufacturer equivalents (2)

MAT 33189 · TFB 195 A

Fitted to (3)

TVM MD 2 · TVM MONITOR · TVM MULTIFUNKTION 2
