HR 46041

type SM · family ASA6 · 22.8 kV maximum anode voltage · 90° deflection · 386 g

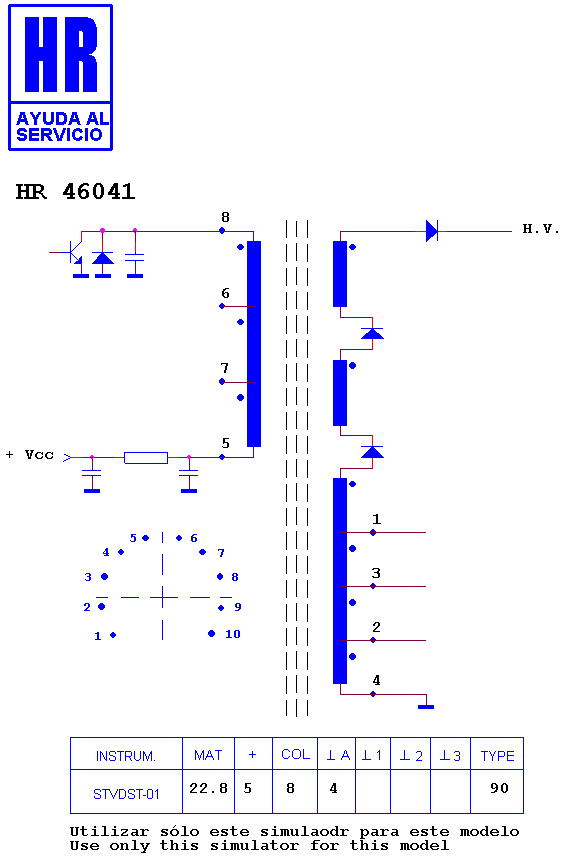

Schematic diagram for HR 46041
schematic (recovered)

Manufacturer equivalents (1)

4221502001

Fitted to (2)

DECISION DATA 3697 · DECISION DATA MONITOR
