HR 46040

type SM · family ASA6 · 28.8 kV maximum anode voltage · L° deflection · 347 g

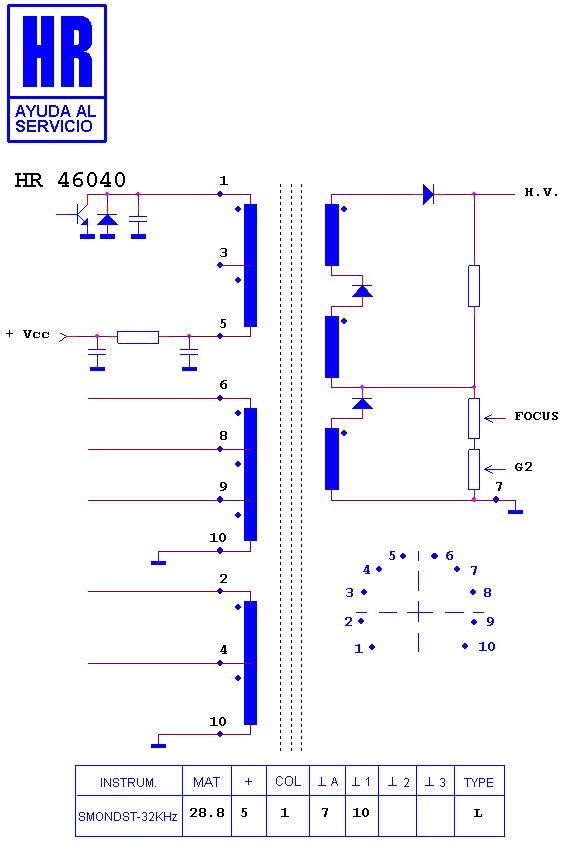

Schematic diagram for HR 46040
schematic (recovered)

Manufacturer equivalents (3)

2433971 · 2433977 · MAT 33155

Fitted to (4)

AMDEK 600 · AMDEK MONITOR · MEMOREX TELEX 600 · MEMOREX TELEX MONITOR
