HR 46036

type SM · family ASA6 · 4 kV maximum anode voltage · L° deflection · 371 g

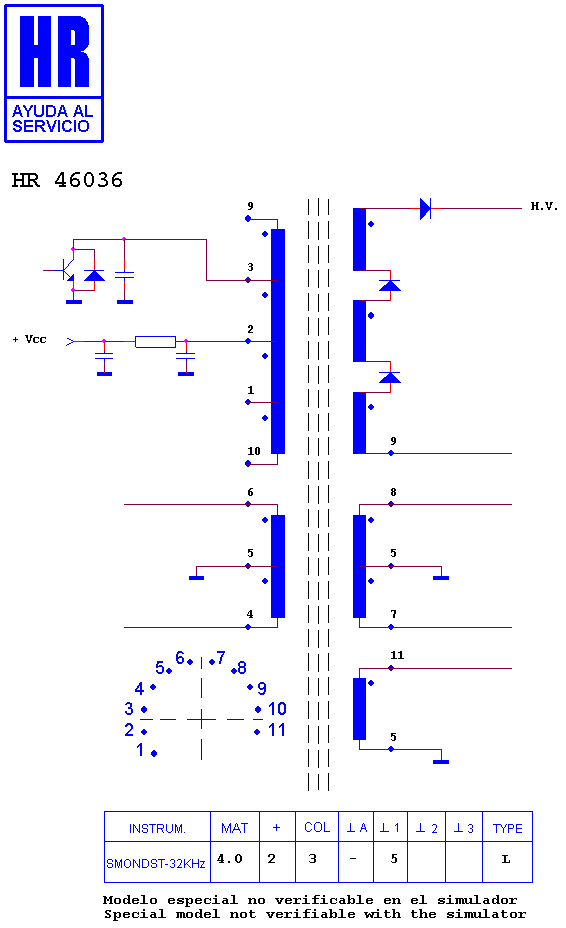

Schematic diagram for HR 46036
schematic (recovered)

Manufacturer equivalents (4)

5107 140 02151 · MAT 33160 · MAT 33431 · ME/0334-31

Fitted to (4)

LINK 197 D · LINK MONITOR · WANG 1413 A · WANG MONITOR
