HR 46033

type SM · family ASA6 · 23.8 kV maximum anode voltage · L° deflection · 386 g

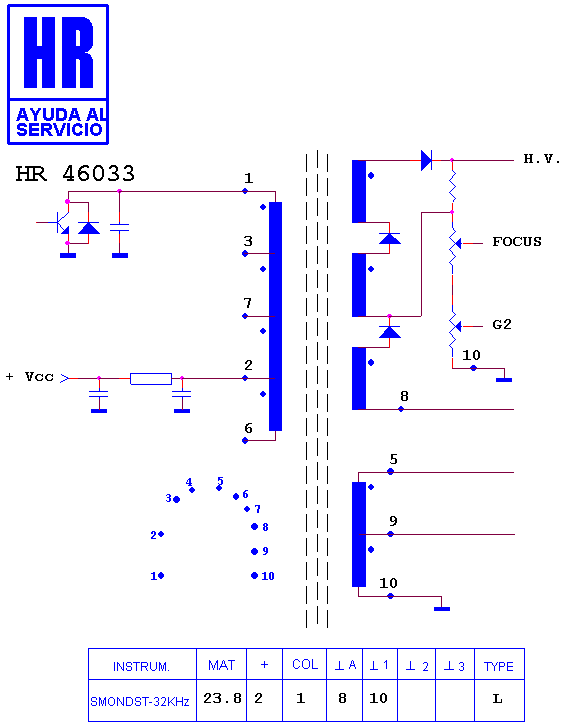

Schematic diagram for HR 46033
schematic (recovered)

Manufacturer equivalents (3)

FCO 14 A 002 · FCO 14 A 002 A · MAT 33474

Fitted to (9)

IBM 8512 · IBM 8513 · IBM 8513-001 · IBM 8513001 · IBM MONITOR · JVC GRAX 17 · JVC MONITOR · SAMSUNG MONITOR · SAMSUNG SYNCMASTER 3
