HR 46030

type SM · family ASA6 · 4 kV maximum anode voltage · L° deflection · 323 g

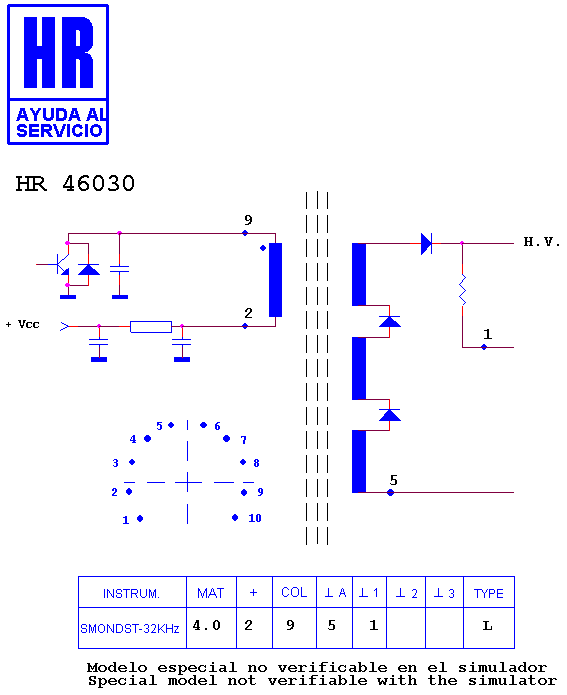

Schematic diagram for HR 46030
schematic (recovered)

Manufacturer equivalents (4)

74730103437 · MAT 33038 · MD 080 A · ME/0330-38

Fitted to (2)

IBM 3180 BLACK · IBM MONITOR
